Same model may have multiple batches, images only for reference.

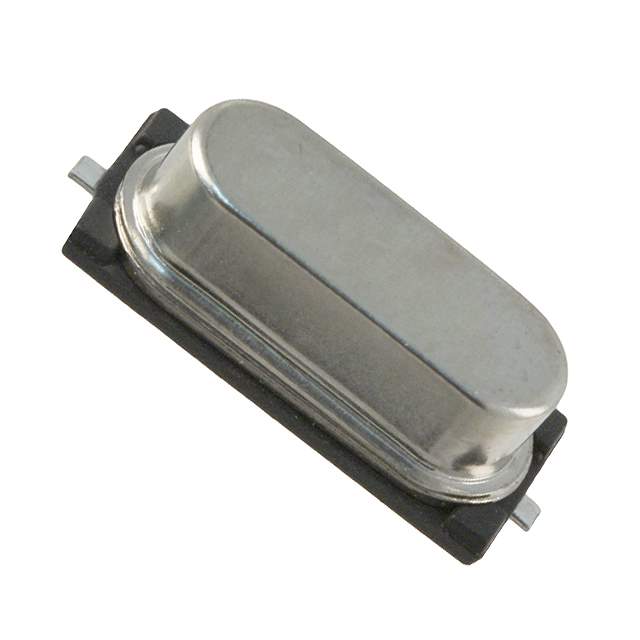

9C-12.000MAAJ-T Real Image
Same model may have multiple batches, images only for reference.

9C-12.000MAAJ-T

Part No 9C-12.000MAAJ-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD / 12 MHz ±30ppm Crystal 18pF 40 Ohms HC-49/US
Datasheet
9C-12.000MAAJ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 9C
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.161" (4.10mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1348726-9C-12.000MAAJ-T
Ultra Librarian 3D Model Ultra Librarian 9C-12.000MAAJ-T CAD Model

Description

The TXC CORPORATION 1348726-9C-12.000MAAJ-T is a 12 MHz MHz crystal that comes in an HC-49/US package.

  • Packaging: Tape & Reel
  • Standard Package: 1,000
  • Size/Dimension: 0.449" L x 0.189" W (11.40mm x 4.80mm)
  • Height-Seated (Max): 0.161" (4.10mm)
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Frequency Stability and Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Operating Temperature Range: -20°C ~ 70°C
  • MSL Level: 1 (Unlimited)
  • REACH: Affected
  • HTSUS: 8541.60.0050
  • Manufacturer: TXC CORPORATION
  • Status: Obsolete
