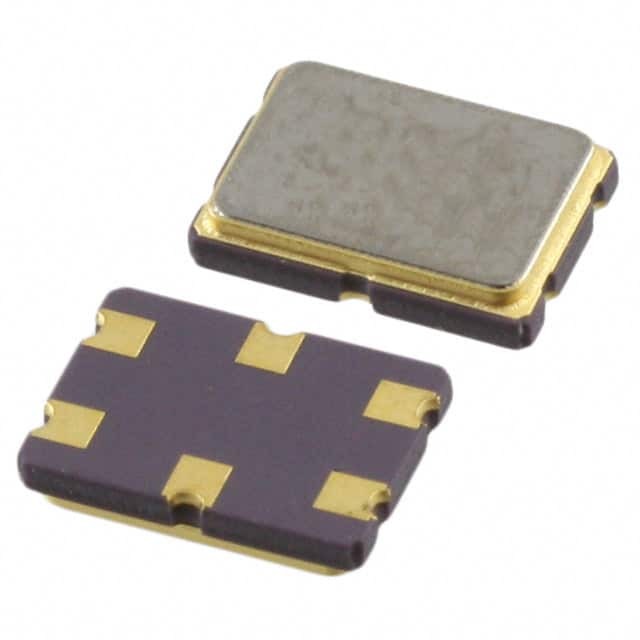

Same model may have multiple batches, images only for reference.
ECS-96SMF21A30
Same model may have multiple batches, images only for reference.

ECS-96SMF21A30

Part No ECS-96SMF21A30
Manufacturer ECS Inc.
Catalog Crystals
Description MONO XTAL 21.4MHZ 2P 2DB SMD / 21.4 MHz Center 2 kOhms Monolithic Crystal Filter Surface Mount 2dB 30 kHz
Datasheet
ECS-96SMF21A30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Monolithic Crystals
Mfr ECS Inc.
Series ECS-96SMF
Package Tape & Reel
Product Status Active
Frequency - Center 21.4 MHz
Impedance 2 kOhms
Insertion Loss 2dB
Bandwidth 30 kHz
Ripple 1dB
Number of Poles 2
Temperature Range - Operating -30°C ~ 80°C
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height (Max) 0.059" (1.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0020
Win Source Part Number 917814-ECS-96SMF21A30
Ultra Librarian 3D Model Ultra Librarian ECS-96SMF21A30 CAD Model

Description

The ECS-96SMF series Monolithic Crystal Filter is a high-performance electronic component designed for use in filtering applications.

  • Center Frequency: 21.4 MHz
  • Bandwidth: 30 kHz
  • Insertion Loss: 2dB
  • Ripple: 1dB
  • Package: surface mount
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Temperature Range: -30°C to 80°C
  • Manufactured by: ECS Inc.
