Same model may have multiple batches, images only for reference.

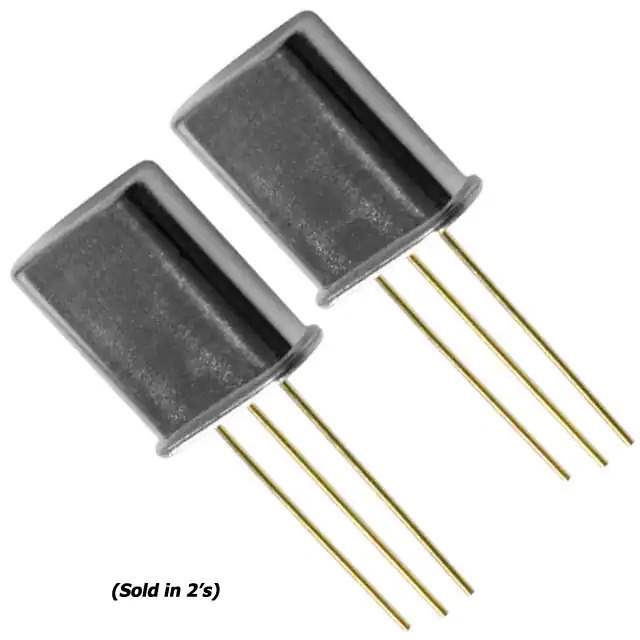

ECS-10.7-15B Real Image
Same model may have multiple batches, images only for reference.

ECS-10.7-15B

Part No ECS-10.7-15B
Manufacturer ECS Inc.
Catalog Crystals
Description MONO XTAL 10.7MHZ 4P 2PC 2.5DB / 10.7 MHz Center 3 kOhms Monolithic Crystal Filter Through Hole 2.5dB 15 kHz
Datasheet
ECS-10.7-15B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Monolithic Crystals
Mfr ECS Inc.
Series MCF
Package Bulk
Product Status Active
Frequency - Center 10.7 MHz
Impedance 3 kOhms
Insertion Loss 2.5dB
Bandwidth 15 kHz
Ripple 1dB
Number of Poles 4
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/U
Size / Dimension 0.437" L x 0.185" W (11.10mm x 4.70mm)
Height (Max) 0.441" (11.20mm)
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 917791-ECS-10.7-15B
Ultra Librarian 3D Model Ultra Librarian ECS-10.7-15B CAD Model

Description

The 917791-ECS-10.7-15B is a monolithic crystal filter designed for use in electronic devices. It belongs to the MCF series of filters and has a package size of 0.437" L x 0.185" W (11.10mm x 4.70mm).

  • Impedance: 3 kOhms
  • Insertion Loss: 2.5dB
  • Height: 0.441" (11.20mm)
  • Poles: 4
  • Ripple: 1dB
  • Bandwidth: 15 kHz
  • Center Frequency: 10.7 MHz
  • Mounting: Through hole
  • Package/Case Type: HC-49/U
  • Operating Temperature Range: -20°C to 70°C
  • Manufacturer: ECS Inc.
  • Market Status: Active
