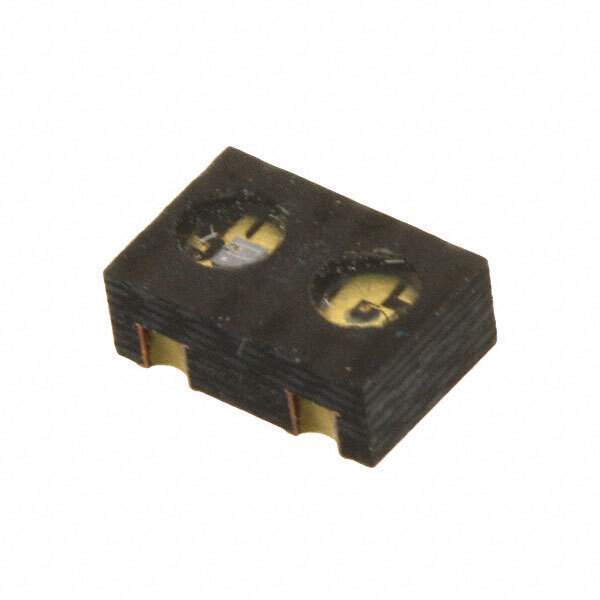

OPR5005 Real Image
Same model may have multiple batches, images only for reference.

OPR5005

Part No OPR5005
Manufacturer TT Electronics
Catalog Optical Sensors - Reflective - Analog Output
Description SENSR OPTO TRANS 5.08MM REFL SMD / Reflective Optical Sensor 0.050" (1.27mm) 4-SMD, No Lead
Datasheet
OPR5005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Reflective - Analog Output
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Sensing Distance 0.050" (1.27mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 25 mA
Current - DC Forward (If) (Max) 50 mA
Output Type Phototransistor
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Temperature Range - Operating -55°C ~ 125°C
RoHS Status RoHS Compliant
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Other Part Number 365-1871,OPR5005-ND
Standard Package 150
Win Source Part Number 1331846-OPR5005
Ultra Librarian 3D Model Ultra Librarian OPR5005 CAD Model

Description

The OPR5005 is an analog output reflective optical sensor that is manufactured by TT Electronics/Optek Technology.

  • Sensor Type: Phototransistor
  • Sensing Distance: 0.050" (1.27mm)
  • Voltage Collector Emitter Breakdown: 30V
  • Current Collector (Ic): 25mA
  • Current DC Forward (If): 50mA
  • Mounting: Surface Mounted
  • Package: 4-SMD, no lead
  • ECCN: EAR99
