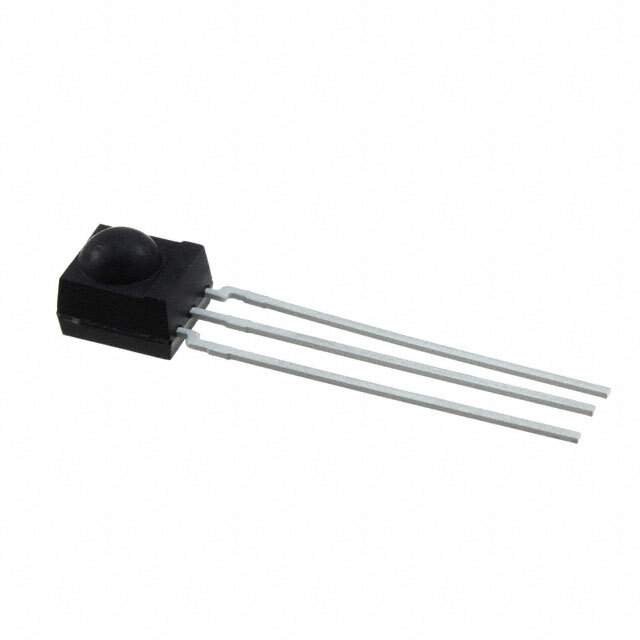

TSOP2240 Real Image
Same model may have multiple batches, images only for reference.

TSOP2240

Part No TSOP2240
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MODULE 40KHZ
Datasheet
TSOP2240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 45m
Carrier Frequency 40.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 0.7mA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 213553-TSOP2240
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSOP2240 CAD Model

Description

The Vishay TSOP2240 is a side view through-hole sensor used in various applications.

  • Sensing Distance: 45m
  • Operating Supply Voltage: 2.5 V to 5.5 V
  • Operating Supply Current: 0.7mA
  • Carrier Frequency: 40.0kHz
  • Temperature Range: -25°C to 85°C (TA)
