Same model may have multiple batches, images only for reference.

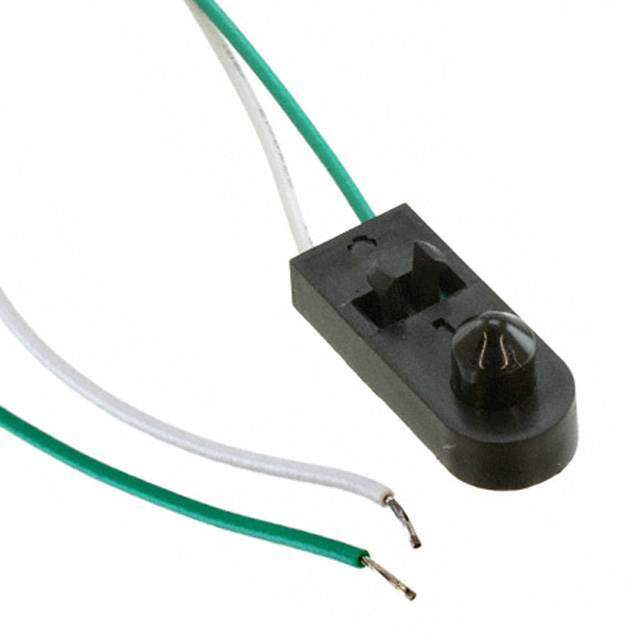

OPB100-SZ Real Image
Same model may have multiple batches, images only for reference.

OPB100-SZ

Part No OPB100-SZ
Manufacturer TT Electronics
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPT SLOT PHOTOTRANS MODUL / Optical Sensor Through-Beam 12" (304.8mm) Phototransistor Module, Pre-Wired
Datasheet
OPB100-SZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr TT Electronics/Optek Technology
Package Bulk
Sensing Distance 12" (304.8mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 100 mA
Current - Collector (Ic) (Max) 50 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Snap-In
Package / Case Module, Pre-Wired
Type Unamplified
Base Product Number OPB100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names OPB100-SZ-ND,Q11045089A,365-1627,OPB100SZ
Standard Package 100
Win Source Part Number 1208550-OPB100-SZ
Ultra Librarian 3D Model Ultra Librarian OPB100-SZ CAD Model

Description

The OPB100-SZ is an unamplified slot type photointerrupter with a phototransistor output.

  • Category: Optical Sensors - Photointerrupters - Slot Type - Transistor Output
  • Manufacturer: TT Electronics/Optek Technology
  • Sensing Distance: 12" (304.8mm)
  • Temperature Range: -40°C to 85°C
  • Voltage Collector Emitter Breakdown: 30V
  • Maximum Collector Current: 50mA
  • Mounting: Snap-In
  • Package: Pre-Wired Module
  • Response Time: Less than 1ms
  • Popularly Used In: Various Sensing Applications
