Same model may have multiple batches, images only for reference.

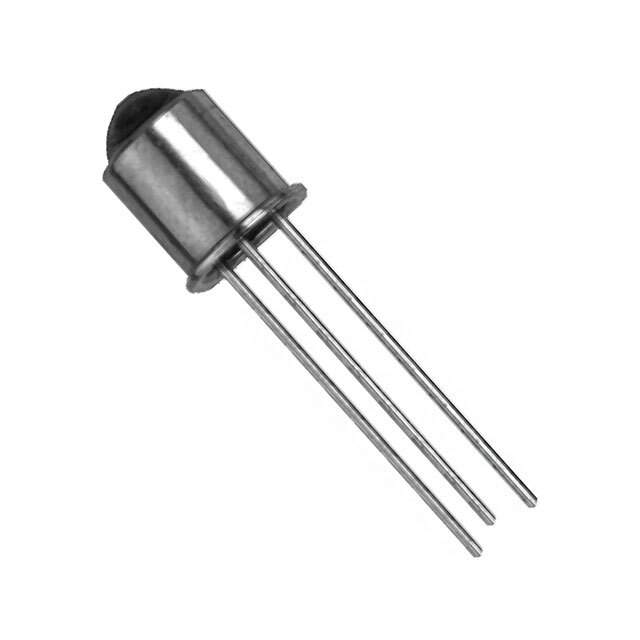

OP803SL Real Image
Same model may have multiple batches, images only for reference.

OP803SL

Part No OP803SL
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 890NM TOP TO206AA  /  Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
Datasheet
OP803SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr TT Electronics/Optek Technology
Package Bulk
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 890nm
Power - Max 250 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Package / Case TO-206AA, TO-18-3 Metal Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names OP803SL-ND,365-1618
Standard Package 25
Win Source Part Number 1110809-OP803SL
Ultra Librarian 3D Model Ultra Librarian OP803SL CAD Model

Description

The OP803SL optical sensor phototransistor is a high-quality sensor designed for various circuit applications.

  • Maximum Power: 250mW
  • Voltage Breakdown: 30V
  • Maximum Collector Current: 50mA
  • Dark Current: 100nA
  • Viewing Angle: -
  • Wavelength: 890nm
  • Mounting: through-hole
  • Package/Case: TO-206AA, TO-18-3 Metal Can
  • Operating Temperature: -65°C to 125°C (TA)
  • ROHS Compliant: Yes
  • ECCN: EAR99
  • Status: obsolete
  • Alternative Part Number: OP 803SL
