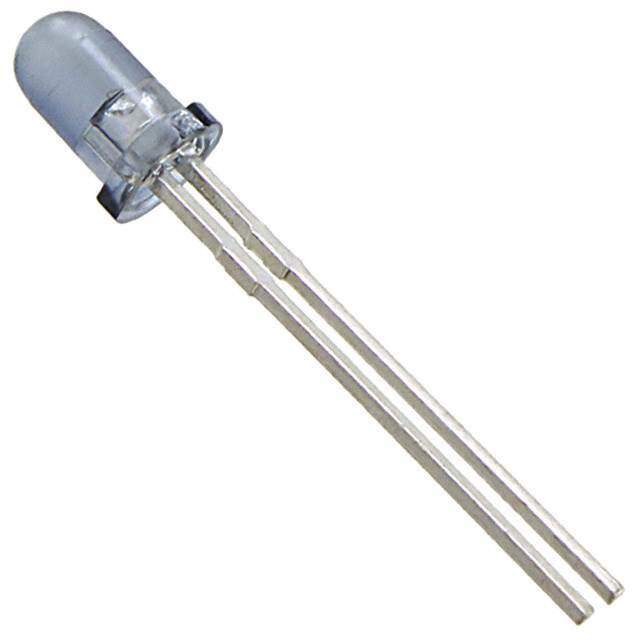

OP505A Real Image
Same model may have multiple batches, images only for reference.

OP505A

Part No OP505A
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 935NM TOP VIEW T1 / Phototransistors 935nm Top View T-1
Datasheet
OP505A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr TT Electronics/Optek Technology
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 5.95 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Power - Max 100 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case T-1
Base Product Number OP505
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names 365-1066
Standard Package 1,000
Win Source Part Number 1177505-OP505A
Ultra Librarian 3D Model Ultra Librarian OP505A CAD Model

Description

This optical sensor-phototransistor electronic component from TT Electronics/Optek Technology has a maximum power of 100mW and a voltage of 30V.

  • Maximum Power: 100mW
  • Voltage: 30V
  • Package: bulk
  • Mounting: through hole
  • Package/Case: T-1
  • Operating Temperature: -40°C to 100°C (TA)
  • Alternative Parts: OP505A (cross-reference)
