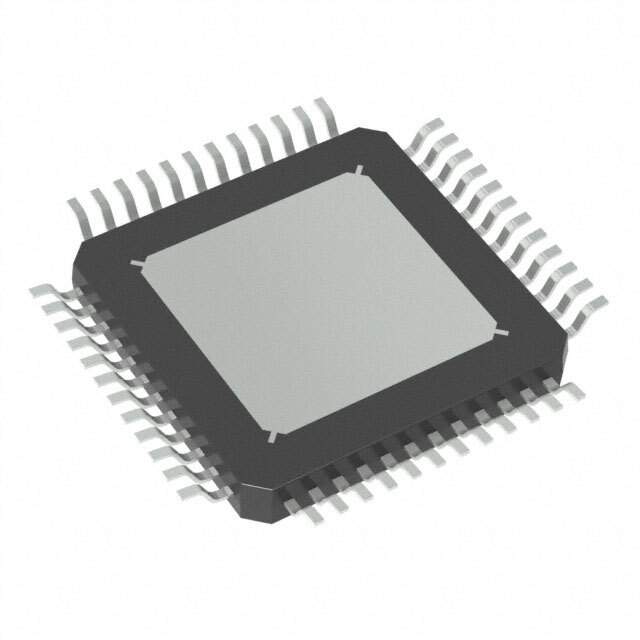

TMC2160A-TA-T Real Image
Same model may have multiple batches, images only for reference.

TMC2160A-TA-T

Part No TMC2160A-TA-T
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRV BIPOLAR 10-50V 48TQFP / Bipolar Motor Driver Power MOSFET SPI, Step/Direction 48-TQFP-EP (7x7)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH
Package Tape & Reel
Motor Type - Stepper Bipolar
Motor Type - AC, DC Universal
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI, Step/Direction
Technology Power MOSFET
Step Resolution 1 ~ 1/256
Applications Automation Control, Industrial, Medical
Current - Output 20A
Voltage - Supply 10V ~ 50V
Voltage - Load 10V ~ 55V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 48-TQFP Exposed Pad
Supplier Device Package 48-TQFP-EP (7x7)
Base Product Number TMC2160
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 00-0194T,1460-TMC2160A-TA-TDKR,1460-TMC2160A-TA-TTR,Q11724201B,1460-TMC2160A-TA-TCT
Standard Package 2,000
Win Source Part Number 1131550-TMC2160A-TA-T
Ultra Librarian 3D Model Ultra Librarian TMC2160A-TA-T CAD Model

Description

The Trinamic Motion Control GmbH TMC2160A-TA-T is a fully integrated driver with control and power stage from Trinamic Motion Control GmbH.

  • Current Output: 20A
  • Output Configuration: Half Bridge (4)
  • Load Voltage Range: 10V ~ 55V
  • Motor Types: Bipolar Stepper Motors and Universal AC/DC Motors
  • Package: 48-TQFP Exposed Pad
  • Mounting: SMD (SMT)
  • Step Resolution: 1 ~ 1/256
  • Interface: SPI and Step/Direction
  • Supply Voltage Range: 10V ~ 50V
  • Applications: Automation Control, Industrial, and Medical
  • ECCN: EAR99
  • Popularity: Moderate
  • MSL Level: 3 (168 Hours)
  • HTSUS Code: 8542.39.0001
