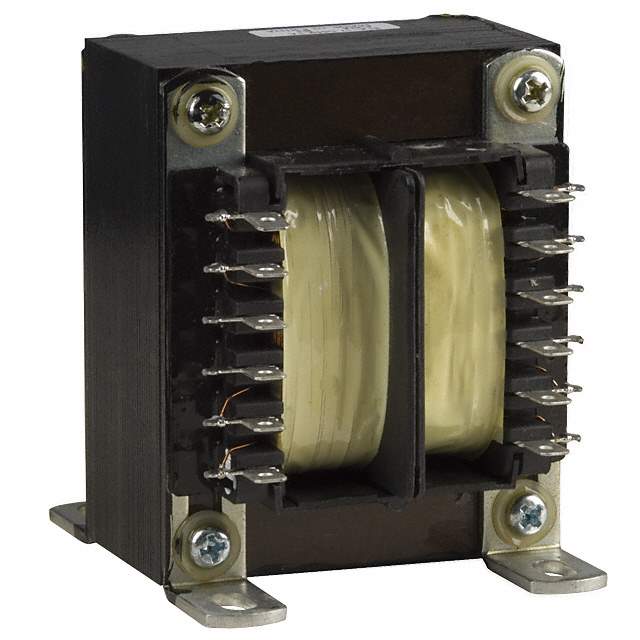

VPS16-5000 Real Image
Same model may have multiple batches, images only for reference.

VPS16-5000

Part No VPS16-5000
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 80VA CHAS MT /
Datasheet
VPS16-5000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Package Box
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 8V, Series 16V
Current - Output (Max) Parallel 10A, Series 5A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 80VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Dimension 63.50mm L x 58.67mm W
Height - Seated (Max) 76.20mm
Voltage - Isolation 4000Vrms
Weight 2.8 lbs (1.3 kg)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names 237-1262,VPS165000,237-1262-NDR
Standard Package 1
Win Source Part Number 1029694-VPS16-5000
Ultra Librarian 3D Model Ultra Librarian VPS16-5000 CAD Model

Description

The Triad Magnetics 1029694-VPS16-5000 is a laminated core power transformer that is designed to provide a maximum power of 80VA.

  • Manufacturer: Triad Magnetics
  • Category: Transformers
  • Winding(s): Dual Primary and Secondary
  • Maximum Power: 80VA
