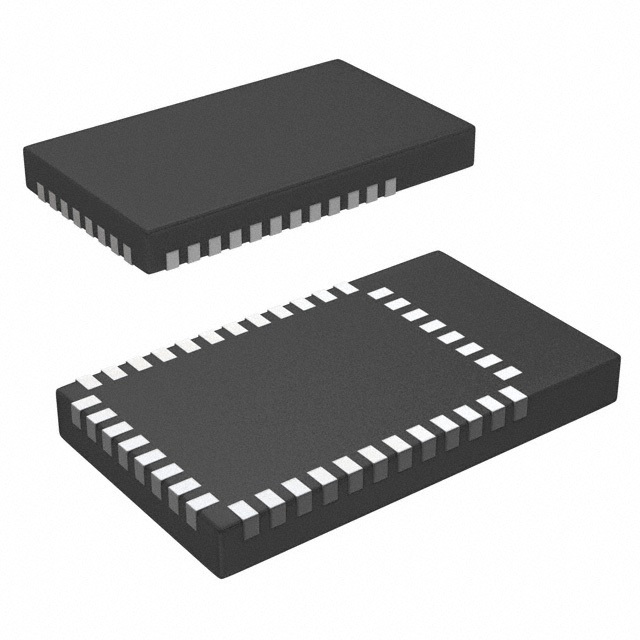

Same model may have multiple batches, images only for reference.
LMX9838SB/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LMX9838SB/NOPB

Part No LMX9838SB/NOPB
Manufacturer Texas Instruments
Catalog RF Transceiver ICs
Description IC MODULE BLUETOOTH CERTIFIED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 135
Category RF/IF and RFID
Family RF Transceiver ICs
Packaging Tray
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v2.0
Frequency 2.4GHz
Data Rate (Max) 704kbps
Power - Output 3dBm
Sensitivity -80dBm
Memory Size 16kB RAM
Serial Interfaces UART
GPIO 3
Operating Supply Voltage 3 V ~ 3.6 V
Current - Receiving 65mA
Current - Transmitting 65mA
Operating Temperature Range -40°C ~ 85°C
Package 70-LGA
Catalog LMX9838
Win Source Part Number 084959-LMX9838SB/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMX9838SB/NOPB CAD Model

Description

The is a highly efficient, secure, and user-friendly Bluetooth Serial Port Module from Texas Instruments, a global semiconductor design and manufacturing company.

  • Features: Fully configured Bluetooth 2.0 system, low power consumption, on-board antenna, crystal oscillators, and passive components
  • Power Consumption: Operates on a single 3.3V power supply, includes power management hardware and firmware
  • Security: Secure simple pairing, link key generation, and encryption
  • Profiles: Serial Port Profile (SPP), Generic Access Profile (GAP), Service Discovery Application Profile (SDAP)
  • Compliance: RoHS compliant
