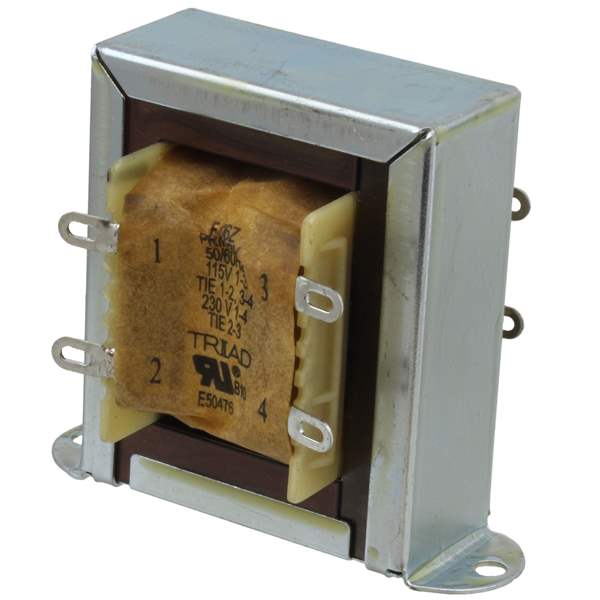

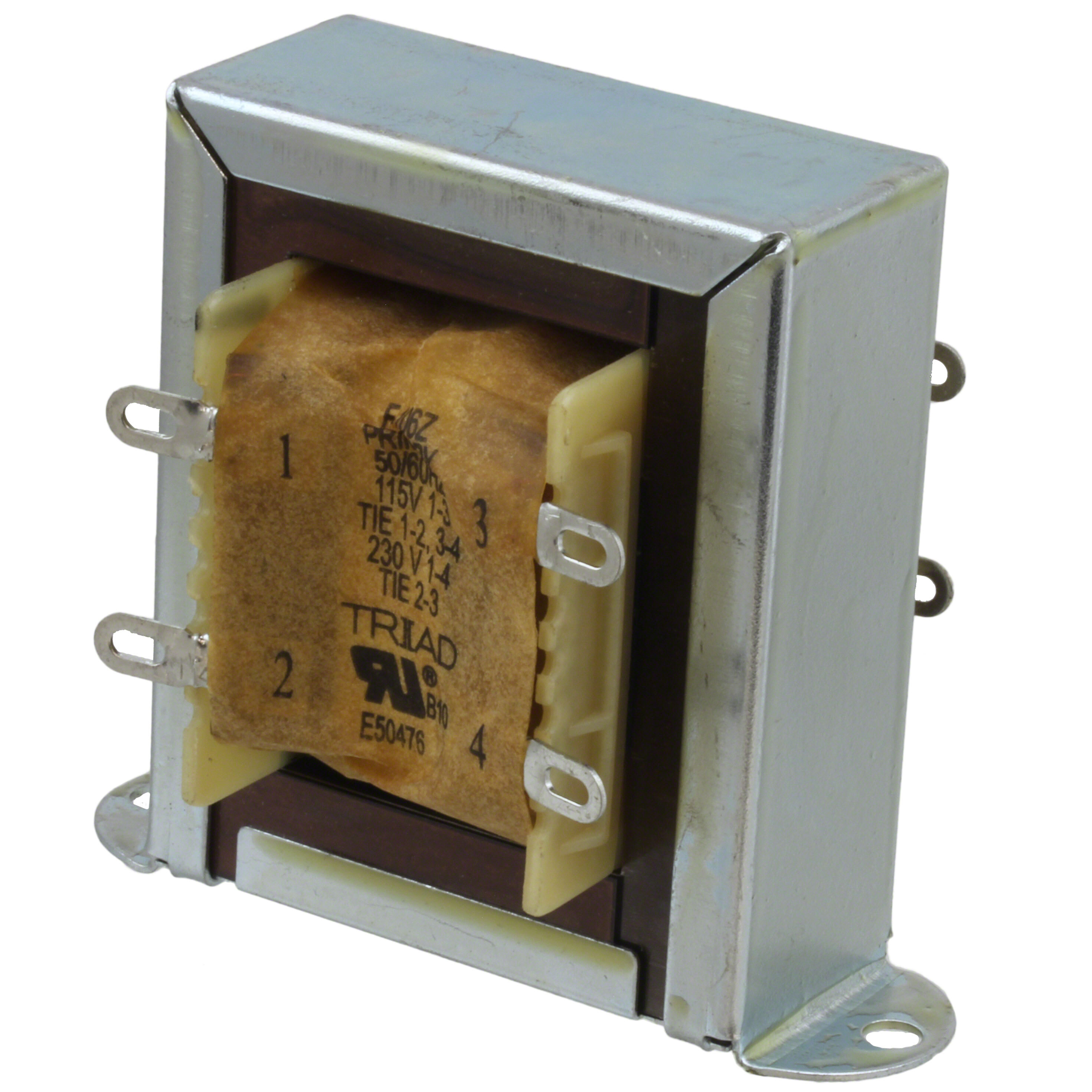

F-280U

Part No F-280U
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR LAMINATED 120VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) 60V
Current - Output (Max) 2A
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap Yes
Power - Max 120VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 85.73mm L x 79.38mm W
Height - Seated (Max) 95.25mm
Voltage - Isolation 1500Vrms
Weight 5.6 lbs (2.5 kg)
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1546287-F-280U
Ultra Librarian 3D Model Ultra Librarian F-280U CAD Model
