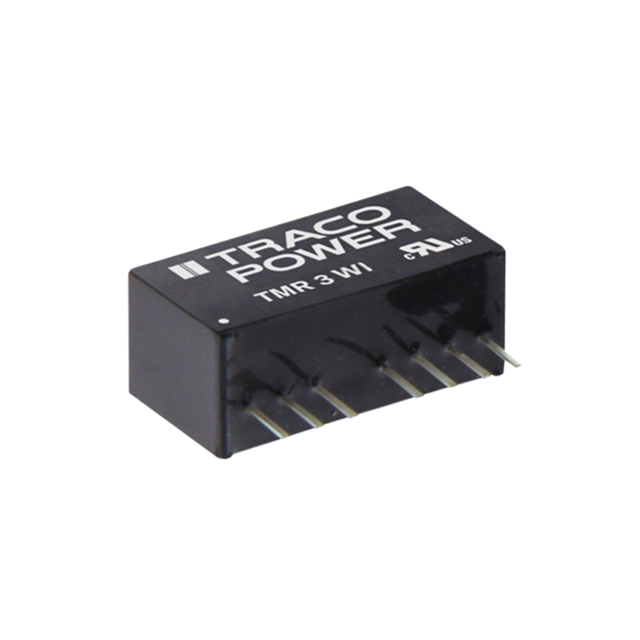

TMR 3-2422WI Real Image
Same model may have multiple batches, images only for reference.

TMR 3-2422WI

Part No TMR 3-2422WI
Manufacturer Traco Power
Catalog Board Mount Modules
Description Module DC-DC 24VIN 2-OUT 12V/-12V 0.125A/-0.125A 3W 7-Pin SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package SIP
Current - Output 1 125 mA
Current - Output 2 125 mA
Depth 9.2 mm
Efficiency 80 %
Height 11.1 mm
Isolation Isolated
Isolation Voltage 1.5 kV
Length 21.8 mm
Max Input Voltage 36 V
Max Input Voltage (DC) 36 V
Max Operating Temperature 85 °C
Max Output Current 125 mA
Max Output Power 3 W
Min Input Voltage 9 V
Min Input Voltage (DC) 9 V
Min Operating Temperature -40 °C
Mount Through Hole
Nominal Input Voltage 24 V
Number of Outputs 2
Number of Pins 7
Output Current 125 mA
Output Power 3 W
Output Voltage 12 V
Power Rating 3 W
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Voltage - Output 1 12 V
Voltage - Output 2 -12 V
Weight 4.8 g
Width 9.2 mm
Win Source Part Number 1207168-TMR 3-2422WI
Categories Board Mount Modules
Manufacturer Traco Power
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TMR 3-2422WI CAD Model

Description

The TMR 3-2422WI is a board mount module from Traco Power, designed for power management applications.

  • Type: Isolated Module
  • Power: 3W
  • Efficiency: 80%
  • Voltage Isolation: 1.5kV
  • Output 1: 12V
  • Output 2: -12V
  • Max Output Current: 125mA
  • Mounting: Through-Hole
  • Case/Package: SIP
