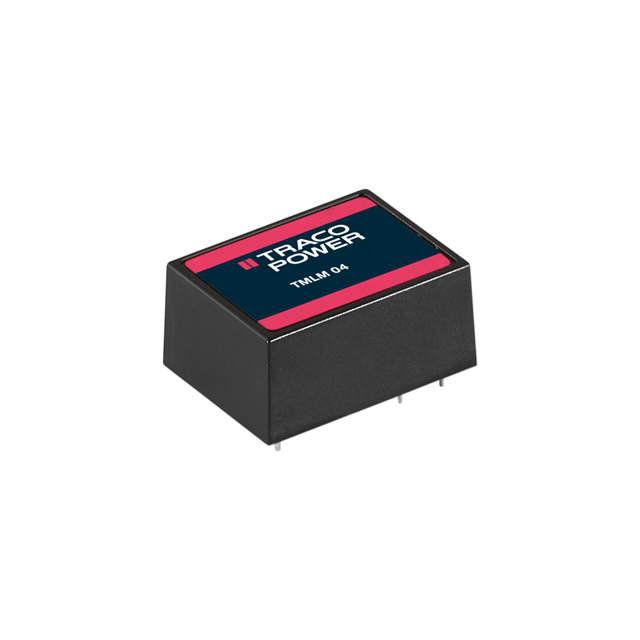

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Number of Outputs 2
Voltage - Input 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 12V
Voltage - Output 2 5V
Current - Output (Max) 250mA, 120mA
Power (Watts) 3.6 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 60°C (With Derating)
Efficiency 69%
Mounting Through Hole
Case / Package 7-DIP Module
Size / Dimension 1.44" L x 1.06" W x 0.67" H (36.5mm x 27.0mm x 17.1mm)
Approval Agency CE, cURus
Line Regulation 0.3%, 3%
Load Regulation 0.5%, 5%
Base Product Number TMLM 04
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Part Number 1951-1287
Standard Package 10
Win Source Part Number 1336101-TMLM 04225
Ultra Librarian 3D Model Ultra Librarian TMLM 04225 CAD Model

Description

The Traco Power TMLM 04225 is a 3.6W AC/DC converter with universal input and two outputs.

  • Size: 1.44" L x 1.06" W x 0.67" H (36.5mm x 27.0mm x 17.1mm)
  • Case: 7-DIP module
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Input Voltage Range: 90 ~ 264 VAC, 120 ~ 370 VDC
  • Efficiency: 69%
  • Output Voltage 1: 12V
  • Output Voltage 2: 5V
  • Line Regulation: 0.3%, 3%
  • Load Regulation: 0.5%, 5%
  • Operating Temperature: -25°C ~ 60°C (With Derating)
  • Approvals: CE, cURus
