Same model may have multiple batches, images only for reference.

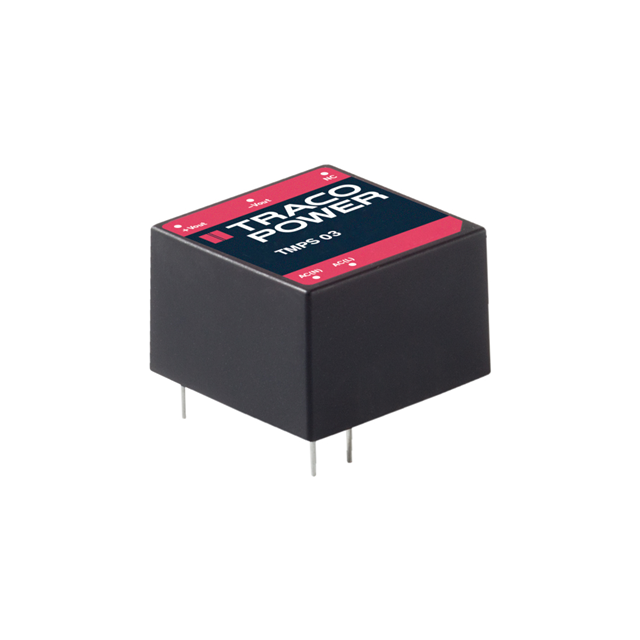

TMPS 03-109 Real Image
Same model may have multiple batches, images only for reference.

TMPS 03-109

Part No TMPS 03-109
Manufacturer Traco Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 9V 3W / Enclosed AC DC Converters 1 Output 9V 333mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
TMPS 03-109 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 9V
Current - Output (Max) 333mA
Power (Watts) 3 W
Applications Household Appliances, ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 77%
Mounting Through Hole
Case / Package 5-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.3mm)
Approval Agency CB, CE, cURus
Base Product Number TMPS 03
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Part Number 2266-TMPS 03-109,TMPS03-109,TMPS 03-109-ND
Standard Package 10
Win Source Part Number 1336109-TMPS 03-109
Ultra Librarian 3D Model Ultra Librarian TMPS 03-109 CAD Model

Description

The Traco Power 1336109-TMPS 03-109 is an enclosed type AC-DC converter with a universal input feature.

  • Power: 3 W
  • Voltage Input: 85 ~ 264 VAC, 120 ~ 370 VDC
  • Package: Standard package of 10
  • Mounting: Through hole type
  • Voltage Output: 9V
  • Operating Temperature: -25°C ~ 70°C (With Derating)
  • ECCN: EAR99 compliant
  • RoHS: RoHS3 status
