Same model may have multiple batches, images only for reference.

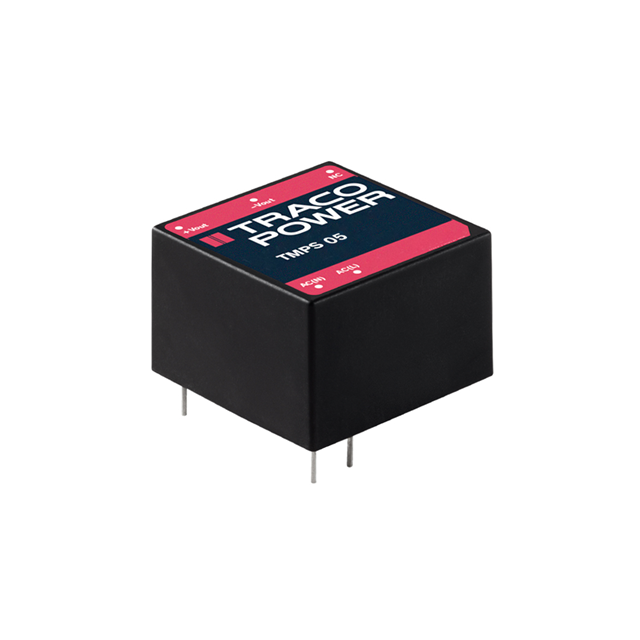

TMPS 05-109 Real Image
Same model may have multiple batches, images only for reference.

TMPS 05-109

Part No TMPS 05-109
Manufacturer Traco Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 9V 5W / Enclosed AC DC Converters 1 Output 9V 555mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
TMPS 05-109 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 9V
Current - Output (Max) 555mA
Power (Watts) 5 W
Applications Household Appliances, ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 5-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.3mm)
Approval Agency CB, CE, cURus
Base Product Number TMPS 05
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Part Number TMPS 05-109-ND,TMPS05-109
Standard Package 10
Win Source Part Number 1336106-TMPS 05-109
Ultra Librarian 3D Model Ultra Librarian TMPS 05-109 CAD Model

Description

The Traco Power TMPS 05-109 is a high-quality enclosed AC/DC converter designed for household appliances and ITE (Commercial) applications.

  • Input Voltage Range: 85 ~ 264 VAC and 120 ~ 370 VDC
  • Power Output: 5W
  • Current Output: 555mA
  • Efficiency: 82%
  • Case: 5-DIP module
  • Compliance: ROHS3 standards
  • Approvals: CB, CE, and cURus
  • Operating Temperature: -25°C to 70°C (with derating)
  • Packaging: 10 units per box
