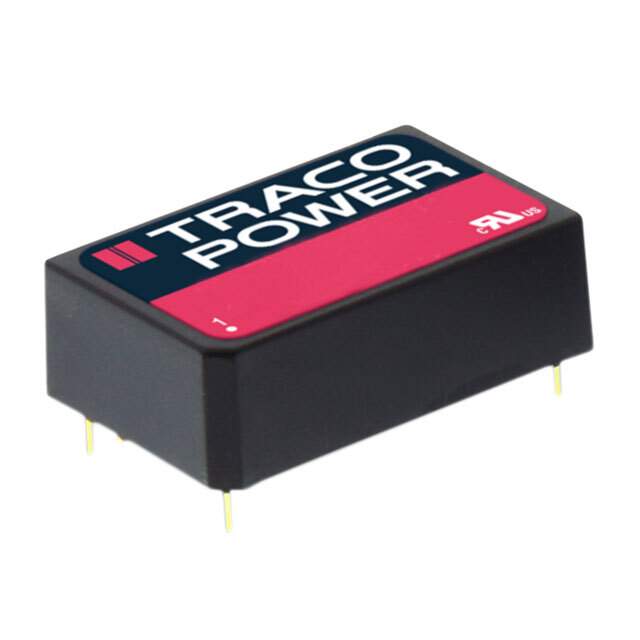

THP 3-7211 Real Image
Same model may have multiple batches, images only for reference.

THP 3-7211

Part No THP 3-7211
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 36V - 160V Input
Datasheet
THP 3-7211 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series THP 3 (3W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 160V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Medical
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 24-DIP Module, 5 Leads
Dimension 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm)
Base Product Number THP 3
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2315
Standard Package 10
Win Source Part Number 1063406-THP 3-7211
Ultra Librarian 3D Model Ultra Librarian THP 3-7211 CAD Model

Description

The Traco Power THP 3 (3W) is an isolated module DC-DC converter that comes with SCP feature. THP 3 (3W) is from Traco Power.

  • Type: Isolated Module DC-DC Converter
  • Features: SCP
  • Applications: ITE (Commercial) and Medical
  • Power Rating: 3W
  • Maximum Output Current: 600mA
  • Input Voltage Range: 36V to 160V
  • Isolation Voltage: 3 kV
  • Output Voltage: Fixed @ 5V
  • Efficiency: 78%
  • Operating Temperature Range: -40°C to 85°C (with derating)
  • Package Type: Through-hole
  • Package: 24-DIP Module with 5 leads
  • Dimension: 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm)
