Same model may have multiple batches, images only for reference.

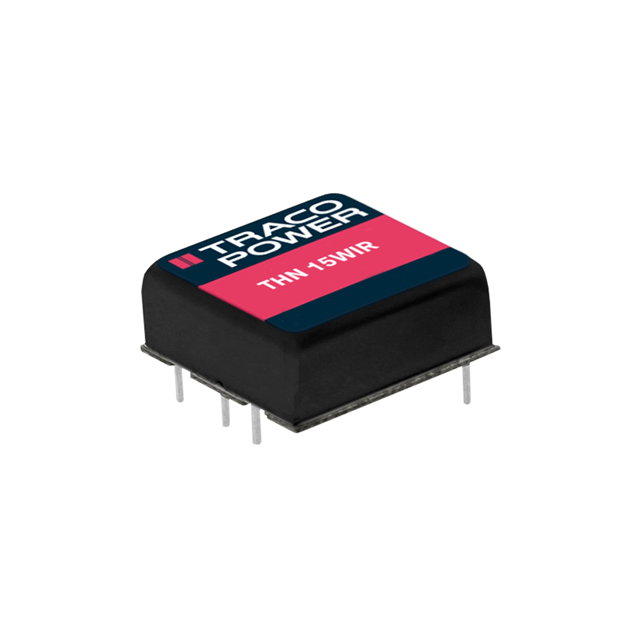

THN 15-4822WIR Real Image
Same model may have multiple batches, images only for reference.

THN 15-4822WIR

Part No THN 15-4822WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 15W / Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 18V - 75V Input
Datasheet
THN 15-4822WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 625mA, 625mA
Power (Watts) 15 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN15-4822WIR,THN 15-4822WIR-ND
Standard Package 10
Win Source Part Number 1336003-THN 15-4822WIR
Ultra Librarian 3D Model Ultra Librarian THN 15-4822WIR CAD Model

Description

The electronic component with Id 1149443 is a Traco Power DC-DC converter module.

  • Power Output: 15W
  • Efficiency: 90%
  • Features: Remote on/off, OVP, SCP, and UVLO
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial) and Railway applications
  • Standard Package: 10
  • Mounting: Through hole
  • Number of Outputs: 2
  • Maximum Current Output: 625mA each
  • Isolation Voltage: 3 kV
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 12V and -12V
  • Operating Temperature Range: -40°C to 90°C (With Derating)
  • RoHS: ROHS3 compliant
  • Status: Not for new designs
