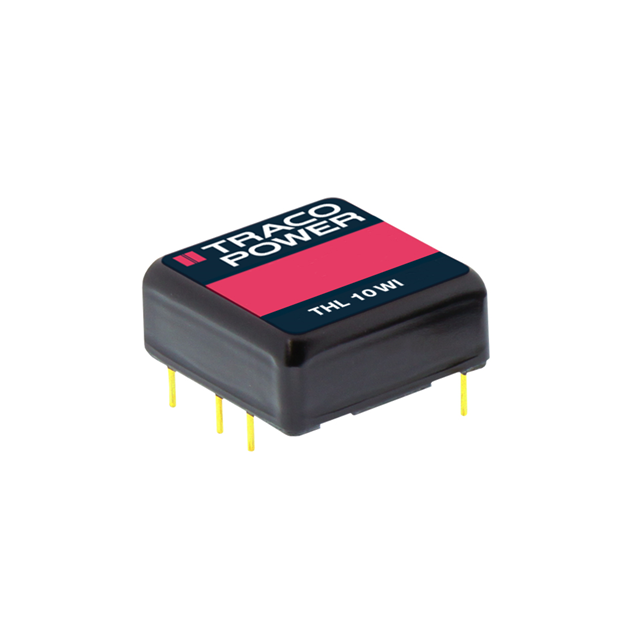

THL 10-4810WI Real Image
Same model may have multiple batches, images only for reference.

THL 10-4810WI

Part No THL 10-4810WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 7.3W / Isolated Module DC DC Converter 1 Output 3.3V 2.2A 18V - 75V Input
Datasheet
THL 10-4810WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 2.2A
Power (Watts) 7.3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 6-DIP Module, 5 Leads
Size / Dimension 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number THL 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THL10-4810WI,THL 10-4810WI-ND
Standard Package 10
Win Source Part Number 1335926-THL 10-4810WI
Ultra Librarian 3D Model Ultra Librarian THL 10-4810WI CAD Model

Description

The Traco Power THL 10-4810WI is an isolated module DC-DC converter that is designed for ITE applications.

  • Power Output: 7.3W
  • Voltage Isolation: 1.5kV
  • Number of Outputs: 1
  • Maximum Output Current: 2.2A
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 3.3V
  • Package: Through-hole 6-DIP module with 5 leads
  • Features: Remote on/off and SCP
  • Operating Temperature: -40°C to 75°C with derating
  • Compliance: ROHS3
