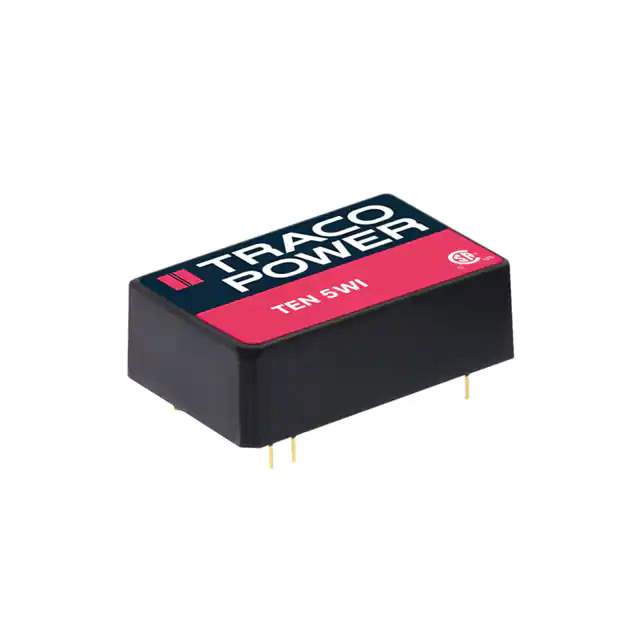

TEN 5-2423WI Real Image
Same model may have multiple batches, images only for reference.

TEN 5-2423WI

Part No TEN 5-2423WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 6W
Datasheet
TEN 5-2423WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TEN 5WI (6W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 200mA, 200mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 5
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 847279-TEN 5-2423WI
Ultra Librarian 3D Model Ultra Librarian TEN 5-2423WI CAD Model

Description

The TEN 5-2423WI Isolated Module is a DC-DC converter from the TEN 5WI series.

  • Series: TEN 5WI
  • Feature: Short Circuit Protection
  • Package Type: Tube
  • Size: 1.25" L x 0.80" W x 0.40" H
  • Application: ITE
  • Power Output: 6W
  • Voltage Isolation: 1.5kV
  • Output Voltage: Dual (15V, -15V)
  • Input Voltage Range: 9V to 36V
  • Efficiency: 82%
  • Status: Active
  • California Prop 65 Warning: Yes
