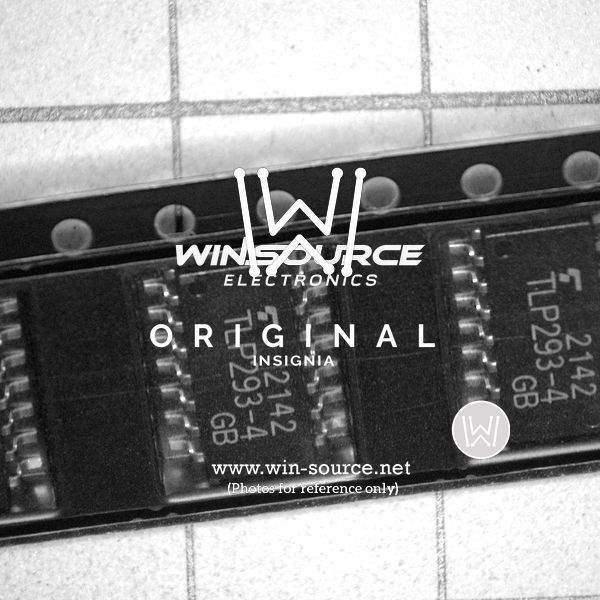

The TLP293-4GB is a quad channel, small outline photorelay from Toshiba Semiconductor and Storage. It features a gallium arsenide infrared emitting diode optically coupled to a MOSFET output. This device is designed for a variety of applications requiring electrical isolation and solid-state switching.

Applications:

• Programmable Logic Controllers (PLCs): Used for I/O modules to isolate control signals.
• Factory Automation: Enables isolated control of actuators and sensors.
• Telecommunications Equipment: Employed in line cards for signal isolation.
• Measuring Instruments: Provides isolation in sensitive measurement circuits.
• Security Systems: Isolates alarm signals and control outputs.

Features:

• Four Channel Configuration: Contains four independent photorelay channels in a single package.
• Small Outline Package: Space-saving design for high-density board layouts.
• High Isolation Voltage: Provides robust electrical isolation between the input and output.
• Low On-Resistance: Minimizes voltage drop across the switch, improving efficiency.
• Fast Switching Speed: Enables rapid switching of signals.
• AC/DC Operation: Suitable for both AC and DC load switching.

Benefits:

• Improved System Reliability: Electrical isolation protects sensitive circuits from voltage spikes and surges.
• Reduced Board Space: The small outline package saves valuable PCB real estate.
• Simplified Design: Integrated quad channel reduces component count and simplifies circuit layout.
• Enhanced Safety: High isolation voltage ensures safe operation in high-voltage environments.
• Increased Efficiency: Low on-resistance minimizes power dissipation and improves overall system efficiency.

Additional Details:

The TLP293-4GB has a typical isolation voltage of 3750 Vrms. The on-resistance is typically around 2 ohms, and the input trigger current is typically 5mA. It operates over a wide temperature range, making it suitable for industrial environments. The package is RoHS compliant. It is a solid-state relay, offering a long operational life and high reliability compared to mechanical relays. The device ensures compatibility with various digital logic circuits and microcontrollers, facilitating ease of design and integration into complex systems. Its compact size and multi-channel configuration render it suitable for applications with space limitations and high channel density requirements.
