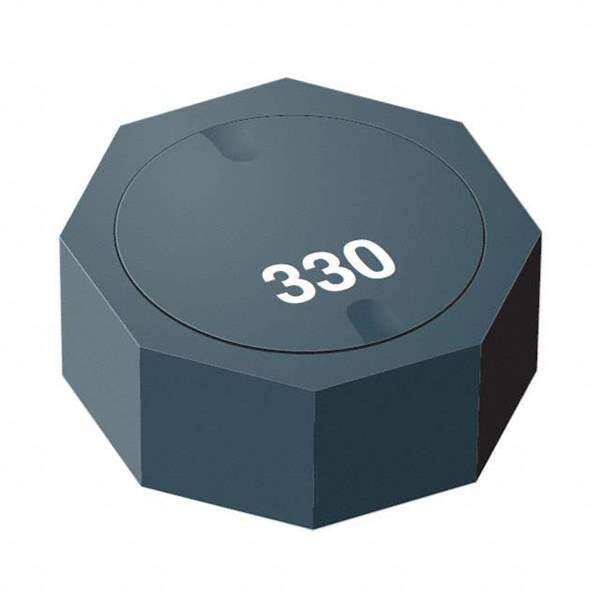

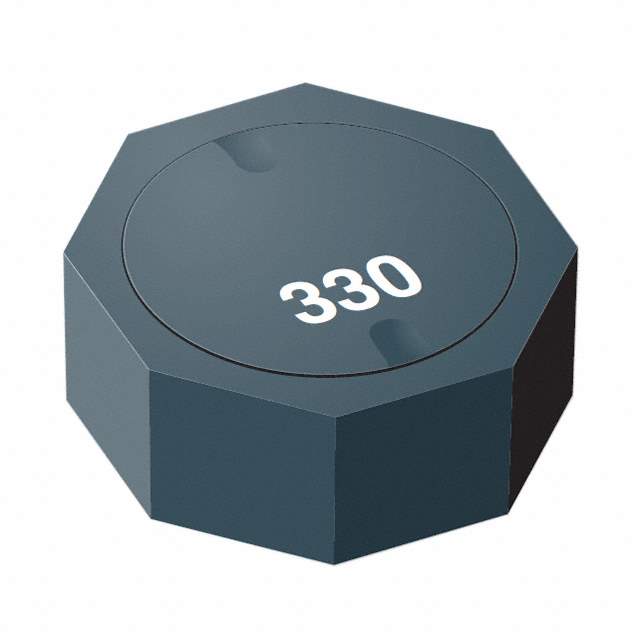

SRU1048A-560Y Real Image
Same model may have multiple batches, images only for reference.

SRU1048A-560Y

Part No SRU1048A-560Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1048A-560Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1048A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±30%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 145mOhm Max
Q @ Freq 26 @ 2.52MHz
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRU1048A
Other Names SRU1048A-560YTR,118-SRU1048A-560YCT,SRU1048A-560Y,118-SRU1048A-560YTR,SRU1048A-560YTR,SRU1048A-560YCT,SRU1048A-560YCT,SRU1048A-560YDKR,SRU1048A-560YDKR,118-SRU1048A-560YDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273123-SRU1048A-560Y
Ultra Librarian 3D Model Ultra Librarian SRU1048A-560Y CAD Model

Description

The Bourns Inc. SRU1048A-560Y is a fixed inductor with a shielded drum core wirewound type.

  • Inductance: 56 μH
  • Tolerance: ±30%
  • Height: 0.201 inches (5.10mm)
  • DC Resistance: 145mOhm Max
  • Q @ Freq: 26 @ 2.52MHz
  • Self-Resonant Frequency: 7MHz
