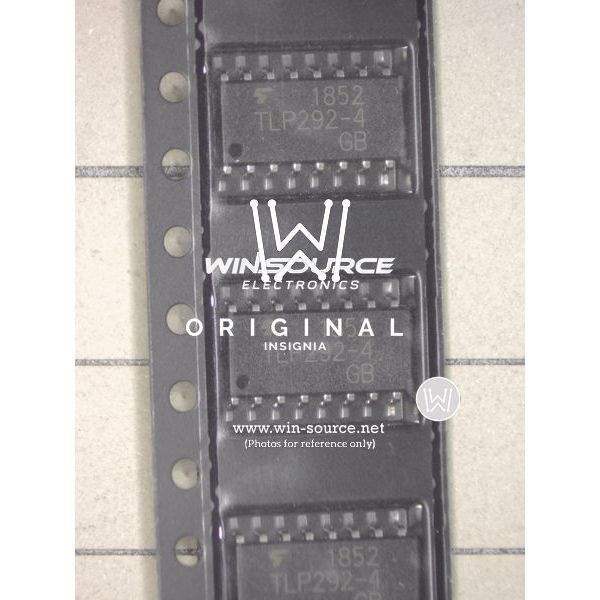

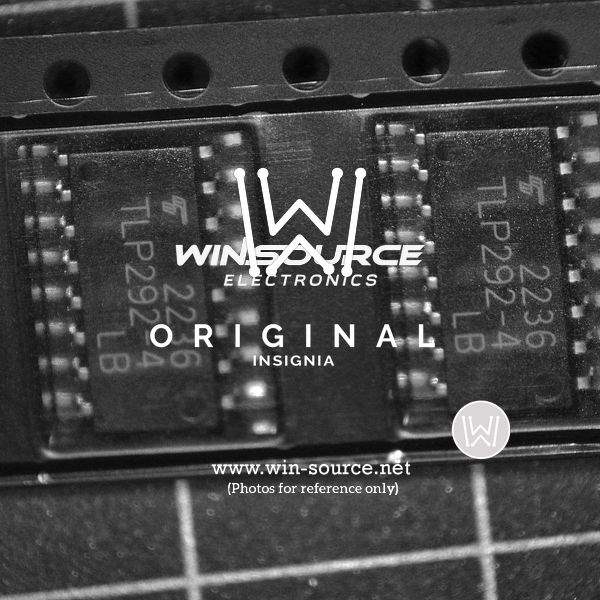

The TLP292-4(GB-TP E(T) is a quad-channel Photocoupler manufactured by Toshiba Semiconductor and Storage. It consists of four independent infrared LEDs optically coupled to phototransistors within a single package. This provides a compact solution for multiple channel isolation in various applications, enhancing safety and reducing noise.

Applications:

• Programmable Logic Controllers (PLCs): Providing isolated input and output channels.
• Industrial Automation: Isolating control signals in motor drives, inverters, and other industrial equipment.
• Measurement and Control Systems: Isolating sensor signals from control circuitry.
• Power Supplies: Providing feedback isolation and control signal isolation in switching power supplies.
• Medical Equipment: Isolating sensitive patient monitoring circuits.

Features:

• Quad-Channel Configuration: Four independent isolation channels in one package, saving board space.
• High Isolation Voltage: Provides strong electrical isolation between input and output.
• Low Input Current: Reduces power consumption.
• High Current Transfer Ratio (CTR): Efficient signal transfer.
• Compact Package: Space-saving design for high-density applications.
• Safety Certifications: Meets UL and other relevant safety standards.

Benefits:

• Space Savings: Integrating four channels into one package reduces board size.
• Enhanced Safety: Provides electrical isolation, protecting circuits and personnel from high voltages.
• Improved Noise Immunity: Reduces the impact of electrical noise on signal integrity.
• Design Simplification: Simplifies circuit design by reducing the number of discrete components.
• Reliable Performance: Ensures consistent and stable operation in various environments.

Additional Details:

The TLP292-4(GB-TP E(T) is designed to provide a high level of electrical isolation, typically in the kilovolt range. The Current Transfer Ratio (CTR) is an important parameter to consider during the design phase. The 'GB-TP E(T' suffix likely indicates specific package types, testing conditions, and pin configurations. As with other photocouplers, switching speed limitations should be considered for high-frequency applications. The device is commonly used to isolate digital signals in noisy environments.
