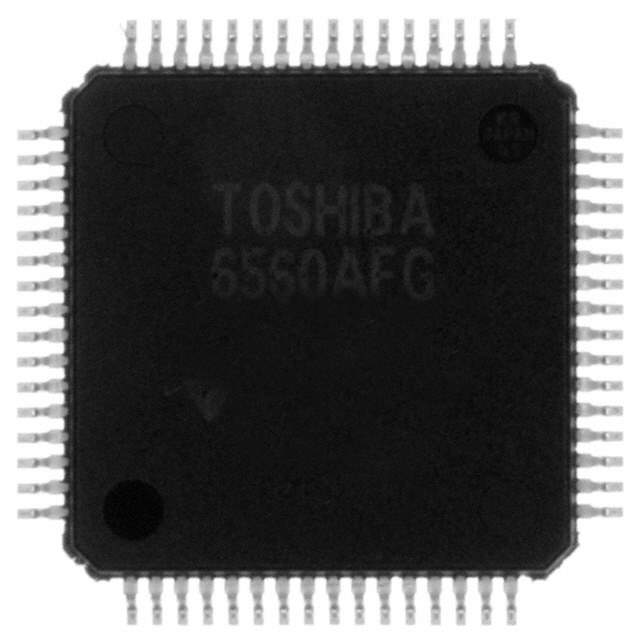

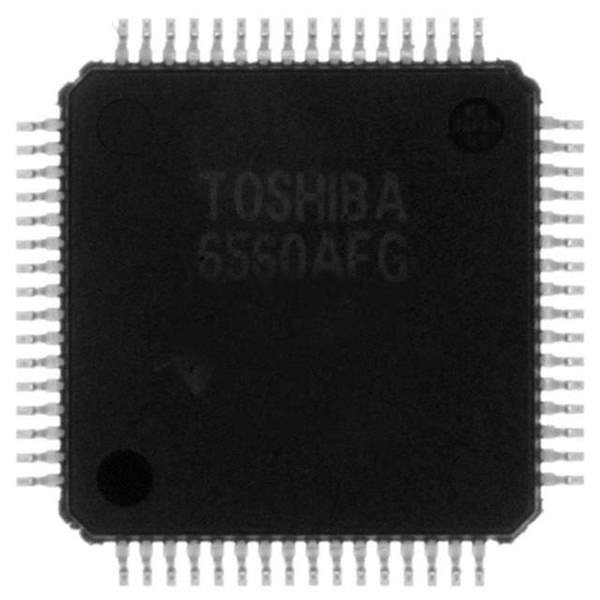

TB6560FG Real Image
Same model may have multiple batches, images only for reference.

TB6560FG

Part No TB6560FG
Manufacturer Toshiba Semiconductor and Storage
Catalog Electronic Wholesale
Description PWM Chopper-Type bipolar Stepping Motor Driver IC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Toshiba Semiconductor and Storage
Win Source Part Number 1264310-TB6560FG
Manufacturer Homepage www.semicon.toshiba.co.jp/eng
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TB6560FG CAD Model

Description

The TB6560FG is a stepper motor driver IC from Toshiba Semiconductor and Storage.

  • Motor Type: Bipolar stepper motors
  • Step Modes: Full, half, and quarter step modes
  • Maximum Output Current: 3.5A
  • Operating Voltage: 9V to 42V
  • Protection Features: Built-in thermal shutdown and overcurrent protection
  • Suitable for: Industrial automation, robotics, and other motion control applications
