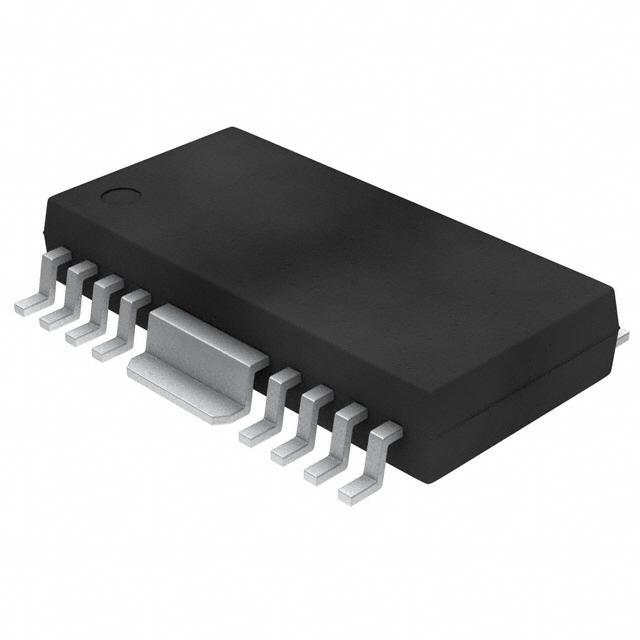

TB6559FG,8,EL Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB6559FG,8,EL

Part No TB6559FG,8,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 16HSOP / Full-Bridge DC Motor Driver IC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel package
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology NMOS, PMOS
Applications General
Output Current 1A
Operating Supply Voltage 10 V ~ 30 V
Voltage - Load 10 V ~ 30 V
Operating Temperature Range -30°C ~ 85°C (TA)
Mounting SMD
Package 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs
Manufacturer Package 16-HSOP
Win Source Part Number 796356-TB6559FG,8,EL
Popularity Medium
Supply and Demand Status Limited
Family Name TB6559FG
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TB6559FG,8,EL CAD Model

Description

The Toshiba Semiconductor and Storage TB6559FG is a fully integrated driver from Toshiba Semiconductor and Storage.

  • Output Configuration: Half bridge (2)
  • Output Current: 1A
  • Motor Type: Brushed DC
  • Voltage Load: 10V ~ 30V
  • Package: 16-BSOP with 2 heat tabs
  • Operating Temperature Range: -30°C ~ 85°C
  • Supply and Demand: Limited
  • EOL Date: 2028 (estimated)
  • Alternative Parts: A3950SEU-T, A3950SLP-T, A3950SEUTR-T, DRV8801AQRMJRQ1
