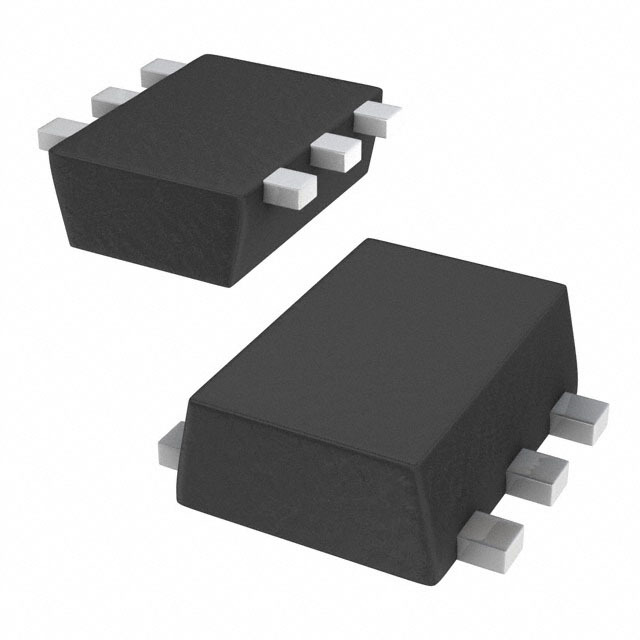

SSM6J401TU,LF Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

SSM6J401TU,LF

Part No SSM6J401TU,LF
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 2.5A UF6 / P-Channel 30 V 2.5A (Ta) 500mW (Ta) Surface Mount UF6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V
Rds On (Max) @ Id, Vgs 73mOhm @ 2A, 10V
Vgs(th) (Max) @ Id 2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 16 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 730 pF @ 15 V
Power Dissipation (Max) 500mW (Ta)
Temperature Range - Operating 150°C
Mounting SMD (SMT)
Supplier Device Package UF6
Package / Case 6-SMD, Flat Leads
Base Product Number SSM6J401
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0095
Other Names SSM6J401TU,LF(B,SSM6J401TULFCT,SSM6J401TULFDKR,SSM6J401TULFTR
Standard Package 3,000
Win Source Part Number 993713-SSM6J401TU,LF
Ultra Librarian 3D Model Ultra Librarian SSM6J401TU,LF CAD Model

Description

The Toshiba Semiconductor and Storage SSM6J401TU,LF is a P-channel MOSFET transistor with a maximum drain to source voltage of 30V and a continuous drain current of 2.5A (Ta).

  • Drain to Source Voltage (Max): 30V
  • Continuous Drain Current: 2.5A (Ta)
  • Rds On (Max): 73mOhm @ 2A, 10V
  • Gate Charge: 16 nC @ 10 V
  • Temperature Range: 150°C
  • Packaging: tape and reel
  • Standard Package: 3000 units
  • HTSUS: 8541.21.0095
