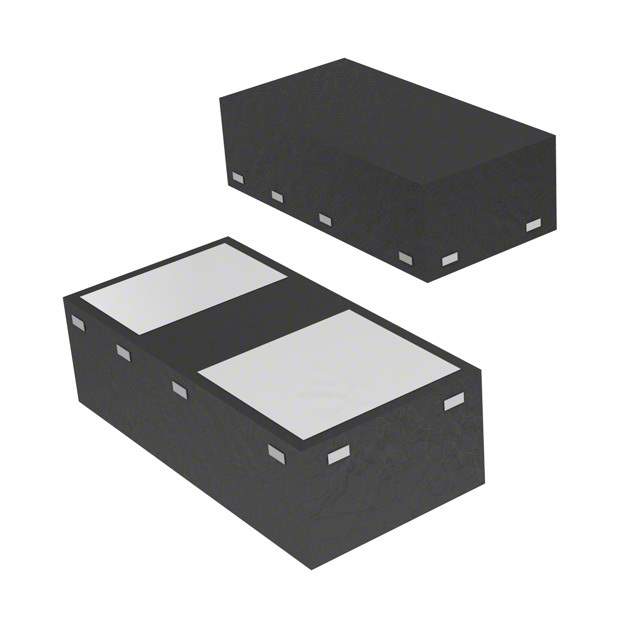

The CCS15S30L3F(T is a Schottky Barrier Diode manufactured by Toshiba Semiconductor and Storage. This diode is designed for high-speed switching applications and features a low forward voltage drop and high surge current capability.

Applications

• High-frequency rectification
• Switching power supplies
• DC-DC converters
• Free-wheeling diodes
• Polarity protection

Features

• Low Forward Voltage Drop: Reduces power loss and improves efficiency.
• High Surge Current Capability: Withstands large current spikes.
• High-Speed Switching: Enables fast switching speeds for high-frequency applications.
• Surface Mount Package: Allows for automated assembly and compact designs.
• Low Leakage Current: Minimizes power loss in reverse bias.

Benefits

• Improved Efficiency: Low forward voltage drop reduces power dissipation.
• Enhanced Reliability: High surge current capability protects against transient events.
• Faster Switching Speeds: Enables higher frequency operation in switching circuits.
• Compact Design: Surface mount package allows for smaller and more efficient designs.
• Reduced Power Loss: Low leakage current minimizes power waste.

Additional Details

The CCS15S30L3F(T utilizes Toshiba's advanced Schottky barrier technology to achieve its high-speed switching and low forward voltage characteristics. It is designed for surface mount assembly, making it suitable for automated manufacturing processes. The diode is commonly used in power supplies, converters, and other high-frequency applications where efficiency and reliability are critical. The "(T" suffix typically indicates a specific packaging or tape-and-reel option for automated assembly.
