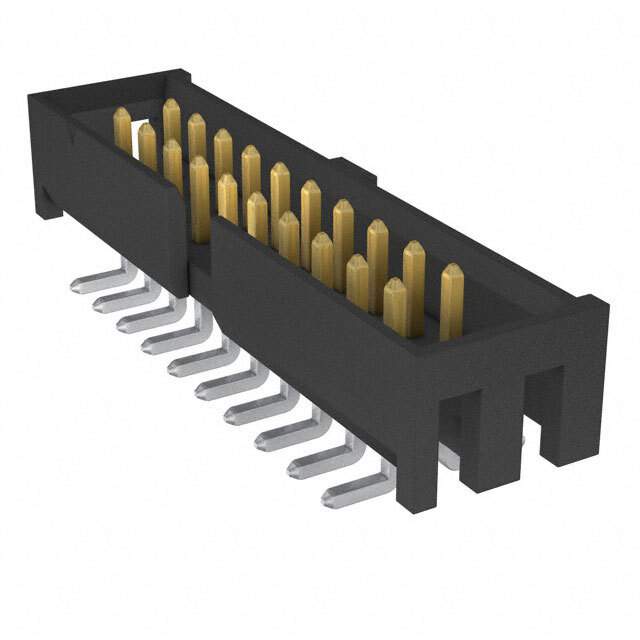

STMM-110-02-F-D-SM Real Image
Same model may have multiple batches, images only for reference.

STMM-110-02-F-D-SM

Part No STMM-110-02-F-D-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
STMM-110-02-F-D-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, STMM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number STMM-110
Other Names STMM-110-02-F-D-SM,SAM11977
Standard Package 22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293193-STMM-110-02-F-D-SM
Ultra Librarian 3D Model Ultra Librarian STMM-110-02-F-D-SM CAD Model

Description

The Flex Stack, STMM series male pin header connector is designed for board to cable/wire style applications.

  • Positions Loaded: 20
  • Contact Type: Male Pins
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold with a thickness of 3.00µin (0.076µm) for mating and tin for post
  • Shrouding: Shrouded 4 wall
  • Keying: Keying Slot
  • Pitch: 0.079" (2.00mm)
  • Contact Length (Mating): 0.120" (3.05mm)
  • Package: Tube
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3A
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Samtec Inc.
