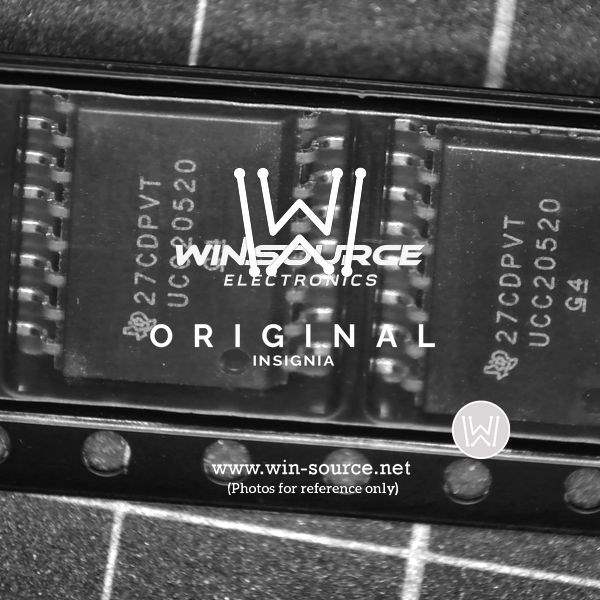

Texas Instruments UCC20520DW Isolated Dual-Channel Gate Driver

The UCC20520DW from Texas Instruments is a state-of-the-art isolated dual-channel gate driver designed for high-performance, high-efficiency applications. This advanced component is ideal for driving power switches like IGBTs and SiC or GaN MOSFETs in a wide range of power conversion and motor control systems.

Key Features and Benefits:

• High Isolation: The UCC20520DW provides robust galvanic isolation between the input and output, which is critical for safety and system reliability. This isolation is rated up to 3 kVrms for 1 minute per UL 1577 and has a working voltage of 1.5 kVrms/min.
• Dual-Channel Flexibility: With two independent channels, this driver allows for flexible configurations, such as dual low-side, dual high-side, high-low side, or half-bridge applications. Each channel can be used to drive a separate switch or combined for high-power applications.
• Fast Propagation Delays: The device features fast and matched propagation delays with a typical value of 19 ns, ensuring precise control over switching events and minimizing the dead-time requirements.
• Robust Performance: The UCC20520DW is designed to withstand harsh operating conditions, with an extended temperature range from -40°C to +125°C and high noise immunity characterized by CMTI greater than 100 V/ns.
• Compact Package: Housed in a 16-pin SOIC package, the UCC20520DW is compact and suitable for space-constrained applications, while still providing excellent thermal performance.

Applications:

The UCC20520DW is versatile and can be used in various applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Motor Drives
• Electric Vehicle (EV) Chargers
• Renewable Energy Inverters
• Industrial Power Supplies

With its combination of performance, isolation, and flexibility, the UCC20520DW from Texas Instruments is an excellent choice for designers looking to improve the efficiency and reliability of their power systems.
