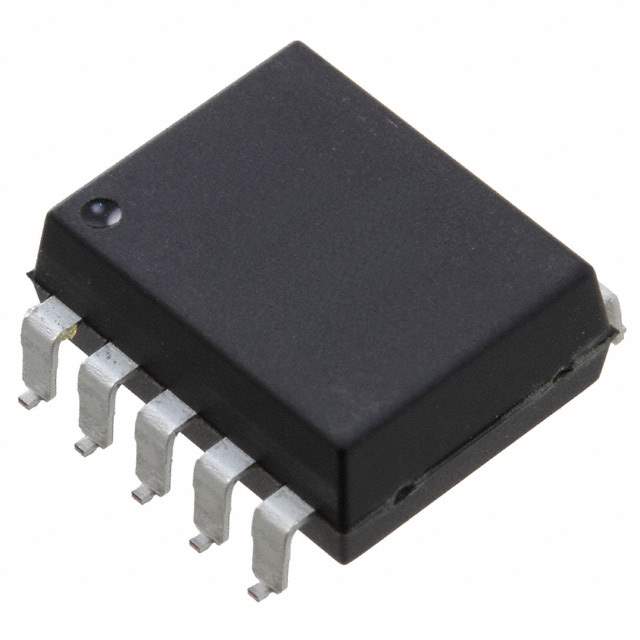

ACNV3130-300E Real Image
Same model may have multiple batches, images only for reference.

ACNV3130-300E

Part No ACNV3130-300E
Manufacturer Broadcom Limited
Catalog Isolators - Gate Drivers
Description OPTOISO 7.5KV GATE DRVR 10DIP GW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 7500Vrms
Common Mode Transient Immunity (Minimum) 40kV/μs
Propagation Delay tpLH / tpHL (Maximum) 500ns, 500ns
Pulse Width Distortion (Maximum) 300ns
Rise / Fall Time (Typ) 100ns, 100ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 1.6V
Current - DC Forward (If) (Maximum) 25mA
Operating Supply Voltage 15 V ~ 30 V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Package 10-SMD, Gull Wing
Manufacturer Package 10-DIP Gull Wing
Approvals CSA, IEC/EN/DIN, UR
Win Source Part Number 766919-ACNV3130-300E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 175
Family Name ACNV3130
Introduction Date October 11, 2012
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ACNV3130-300E CAD Model

Description

The ACNV3130-300E is an optical coupling isolator from Broadcom Limited.

  • Package: 10-SMD, gull-wing
  • Approvals: CSA, IEC/EN/DIN, UR
  • Voltage Isolation: 7500Vrms
  • Current Output High: 2A
  • Current Output Low: 2A
  • Forward Voltage: 1.6V
  • Rise/Fall Time: 100ns
  • Current Peak Output: 2.5A
  • Common Mode Transient Immunity: 40kV/μs
