Introducing the TXB0108YZPR2 from Texas Instruments

The TXB0108YZPR2 is a state-of-the-art, 8-bit bidirectional voltage-level translator designed by Texas Instruments. Engineered to provide seamless voltage translation between different logic levels, this device is an ideal solution for applications that require interfacing between microcontrollers, microprocessors, sensors, and other digital components operating at varying voltage levels.

With its cutting-edge design, the TXB0108YZPR2 supports bidirectional voltage translation without the need for direction control, simplifying circuit design and reducing board space requirements. It is capable of translating between any voltage level from 1.2V to 3.6V on the A side (VCCA) and 1.65V to 5.5V on the B side (VCCB). This flexibility makes it incredibly versatile, suitable for multi-voltage systems and compatible with a wide range of devices.

The device utilizes Texas Instruments' Auto-Direction Sensing technology, which automatically determines the direction of data flow without the need for a dedicated direction control pin. This feature ensures a plug-and-play experience, significantly reducing design complexity and enhancing the reliability of data transfer between different voltage domains.

Furthermore, the TXB0108YZPR2 comes equipped with an 8-channel configuration, providing ample connectivity for multiple data lines. Each channel is capable of high-speed data transfer, with a maximum data rate of up to 100 Mbps, ensuring quick and efficient communication in time-sensitive applications.

This voltage-level translator is also designed with the protection of your devices in mind. It includes integrated pull-up resistors on the I/O lines to prevent floating inputs and incorporates robust ESD protection circuits that safeguard the device against electrostatic discharge events.

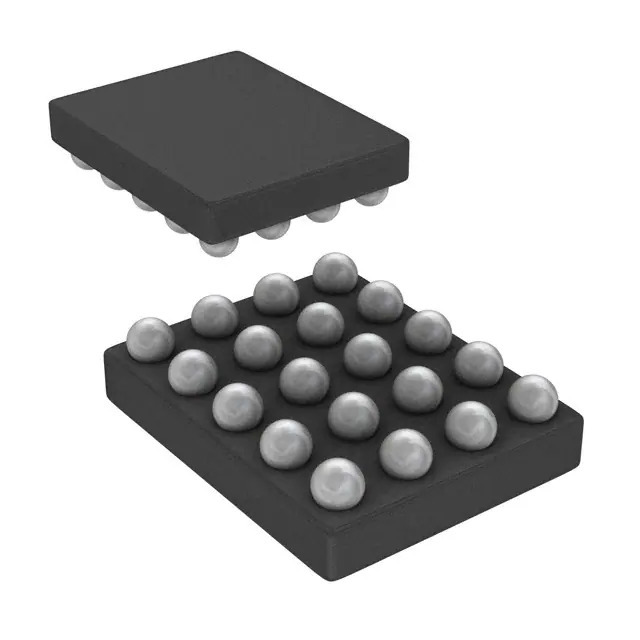

The TXB0108YZPR2 is available in a compact, lead-free, surface-mount package that is RoHS compliant, making it suitable for environmentally conscious applications and modern manufacturing processes. Whether you're working on consumer electronics, mobile devices, computing, or IoT projects, the TXB0108YZPR2 from Texas Instruments is a reliable and efficient solution for your voltage translation needs.
