The TXB0104RGYRG4 is a state-of-the-art, 4-bit bidirectional voltage-level translator from Texas Instruments. This device is designed to offer a seamless interface between higher and lower voltage circuits in mixed-voltage systems. The TXB0104RGYRG4 is particularly suitable for applications where a low-voltage microcontroller needs to communicate with higher voltage components, making it an ideal choice for multi-voltage digital system design.

Key Features

• Bi-Directional Translation: The TXB0104RGYRG4 can translate signals in both directions, from V_CCA to V_CCB, and vice versa, without the need for a direction control signal.
• Auto-Direction Sensing: The automatic direction sensing feature ensures that the data flow direction is determined without external intervention, simplifying the design and reducing the pin count.
• Wide Voltage Range: It supports a wide range of operating voltages from 1.2V to 3.6V on the A port and 1.65V to 5.5V on the B port, enabling compatibility with a variety of logic levels.
• Low Power Consumption: Designed with power-saving in mind, this device consumes very low quiescent current, which is beneficial for battery-powered applications.
• Robust ESD Protection: The TXB0104RGYRG4 is equipped with robust Electrostatic Discharge (ESD) protection, ensuring the reliability and longevity of the device in harsh environments.

Applications

The versatility of the TXB0104RGYRG4 makes it suitable for a range of applications, including but not limited to:

• Mobile Devices
• Computing Platforms
• Data Communication
• Consumer Electronics
• Embedded Systems

Package and Quality

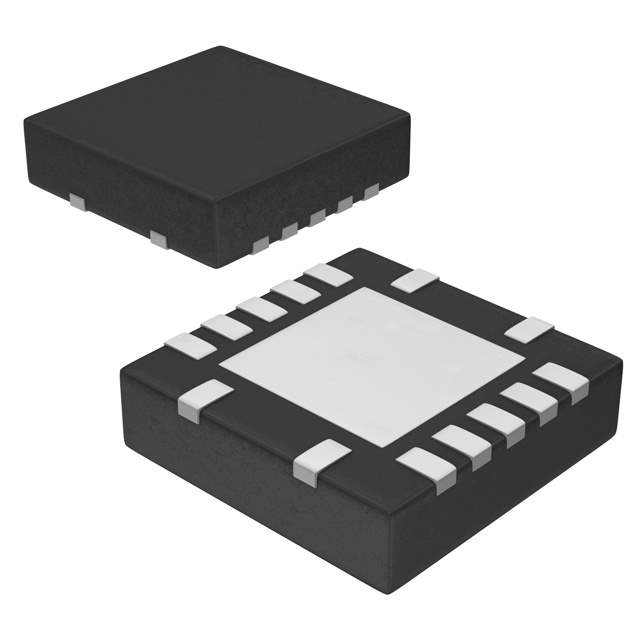

The TXB0104RGYRG4 comes in a compact QFN-14 package and is characterized for operation from -40°C to 85°C. Texas Instruments is committed to delivering high-quality products, and this device is no exception, meeting stringent industry standards for performance and reliability.
