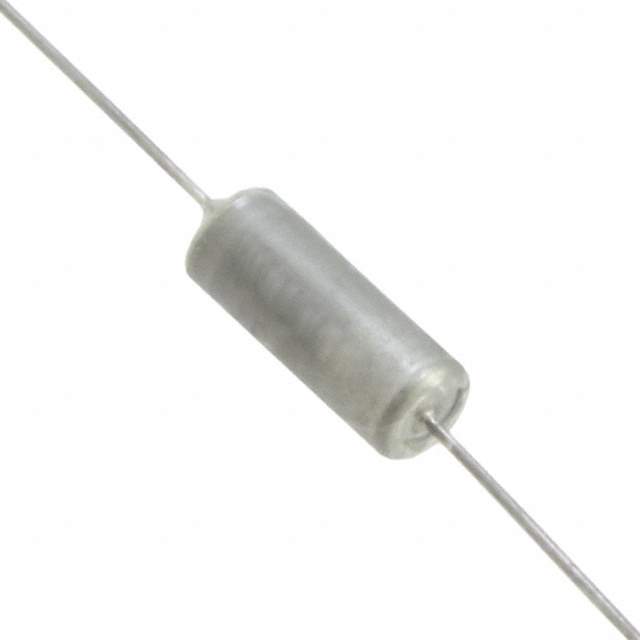

M39003/01-2271 Real Image
Same model may have multiple batches, images only for reference.

M39003/01-2271

Part No M39003/01-2271
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 15V AXIAL
Datasheet
M39003/01-2271 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 22μF
Tolerance ±10%
Voltage Rating 15V
Type Hermetically Sealed
ESR 2 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.185" Dia x 0.610" L (4.70mm x 15.49mm)
Manufacturer Size Code B
Features Military
Failure Rate M (1%)
Win Source Part Number 1021811-M39003/01-2271
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian M39003/01-2271 CAD Model

Description

The M39003/01-2271 is a hermetically sealed tantalum capacitor with a capacitance of 22uF and a voltage rating of 15V.

  • Tolerance: +/-10%
  • Maximum ESR: 2 ohms
  • Package: through-hole
  • Applications: military equipment, avionics, and space applications
