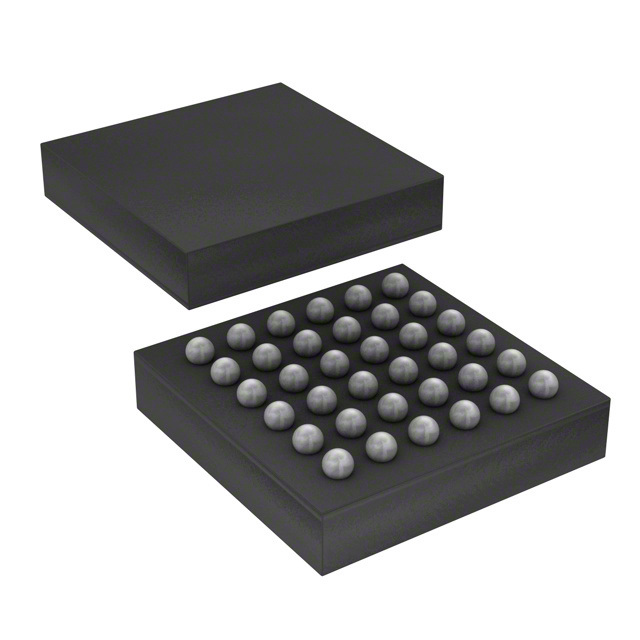

The Texas Instruments TS5MP645NYFPR is a high-performance, low-power, 4-bit 1-of-2 multiplexer-demultiplexer designed for application in signal routing and switching. This advanced switch is part of the Texas Instruments signal switch series and is specifically engineered to cater to the needs of high-speed data lanes in modern electronic systems.

Key Features

• High Bandwidth: The TS5MP645NYFPR boasts a wide bandwidth that supports high-speed data transfer, making it ideal for applications that require fast and efficient data routing.
• Low Crosstalk: With its superior design, this switch significantly reduces crosstalk, ensuring that signals are transmitted with high integrity and minimal interference.
• Low Power Consumption: Energy efficiency is at the core of this product, with low power consumption that helps to minimize the overall energy footprint of the system it is integrated into.
• Versatility: The switch is versatile and capable of handling various signal types, including differential and single-ended signals, which makes it suitable for a broad range of applications.
• ESD Protection: It comes equipped with Electrostatic Discharge (ESD) protection circuitry, which safeguards the device against the potential damages caused by static electricity.

Applications

The TS5MP645NYFPR is designed for multifaceted applications, including:

• Mobile Handsets
• Data Communication
• Signal Routing
• Networking Equipment
• Personal Computers
• Consumer Electronics

Technical Specifications

The TS5MP645NYFPR operates over a wide temperature range and is available in a compact QFN package. It supports a bidirectional switch configuration and has a low on-state resistance. The switch is compliant with various industry standards, ensuring compatibility and reliability in diverse environments.

Conclusion

With its robust feature set and Texas Instruments' reputation for quality and reliability, the TS5MP645NYFPR is an excellent choice for designers looking to incorporate a high-speed, low-power signal switch into their electronic systems. It offers the performance and flexibility needed to manage the demands of data-intensive applications while maintaining signal integrity and energy efficiency.
