Product Overview: Texas Instruments TS5A22366YFCR

The Texas Instruments TS5A22366YFCR is a state-of-the-art dual single-pole double-throw (SPDT) analog switch designed for precision and high-performance applications. This component is a part of the extensive Texas Instruments switch and multiplexer portfolio, which is renowned for its reliability and efficiency in electronic circuits.

The TS5A22366YFCR offers a low on-state resistance of typically 0.8 ohms, which minimizes the signal distortion and provides excellent signal fidelity. Its low charge injection feature ensures that switching does not introduce significant noise or disrupt the integrity of the signal path, making it an ideal choice for audio, data, and signal routing applications.

This analog switch operates over a wide power supply range of 2.3V to 5.5V, which allows it to be used in a variety of systems without the need for level shifting. Its single-supply operation simplifies the design and reduces power consumption, making it suitable for battery-powered and portable devices.

Furthermore, the TS5A22366YFCR is characterized for operation from -40°C to +85°C, ensuring robust performance in diverse environmental conditions. This temperature range makes it suitable for industrial, automotive, and consumer electronics applications where reliability is crucial.

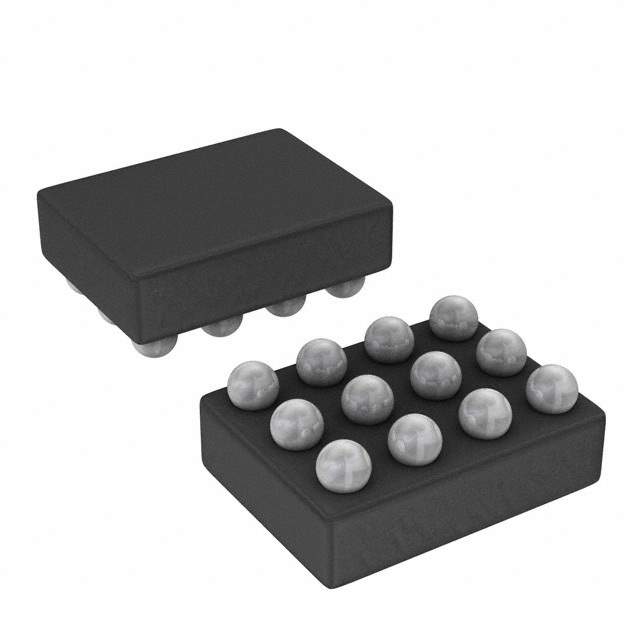

The device comes in an ultra-small 2.00-mm × 1.25-mm WCSP (YFC) package, which is optimal for space-constrained applications. The compact form factor is particularly beneficial for mobile phones, tablets, and other portable electronics where board space is at a premium.

For design flexibility, the TS5A22366YFCR features break-before-make switching, which prevents signal overlap during channel transitions. This is important for applications that require precise signal routing and isolation, such as multiplexing signals in data acquisition systems.

In summary, the Texas Instruments TS5A22366YFCR is a versatile and high-performance analog switch that offers low on-resistance, low charge injection, and a wide operating temperature range, all packed in a small footprint. Its robust performance and design flexibility make it an excellent choice for designers looking to optimize their signal routing applications.
