The Texas Instruments TS3A24159YZPR is a high-performance, dual-channel 2:1 multiplexer/demultiplexer analog switch that offers a versatile solution for signal routing in various electronic applications. Its bidirectional nature allows it to be used in both multiplexing and demultiplexing operations, providing flexibility in the design of audio, video, and data communication systems.

Key Features

• Wide Operating Voltage Range: The TS3A24159YZPR operates over a broad voltage range from 1.65V to 5.5V, making it suitable for interfacing with a wide variety of logic levels and accommodating different system power requirements.
• Low On-State Resistance: With a typical on-state resistance of just 0.37 ohms, the switch ensures minimal signal distortion and power loss, which is crucial for maintaining signal integrity in high-performance applications.
• Low Crosstalk: The device exhibits very low crosstalk between channels, which is essential for maintaining the purity of signals, especially in high-speed and high-frequency applications.
• High Bandwidth: It features a high bandwidth that exceeds 300 MHz, allowing it to pass high-speed signals with minimal signal degradation.
• Break-Before-Make Switching: The TS3A24159YZPR incorporates break-before-make switching functionality, which prevents signal overlap and ensures smooth transitions between channels.

Applications

The TS3A24159YZPR is an ideal choice for a wide range of applications, including but not limited to:

• Signal routing in audio and video equipment
• Data acquisition systems
• Communication devices
• Test and measurement equipment
• Portable electronics

Package and Quality

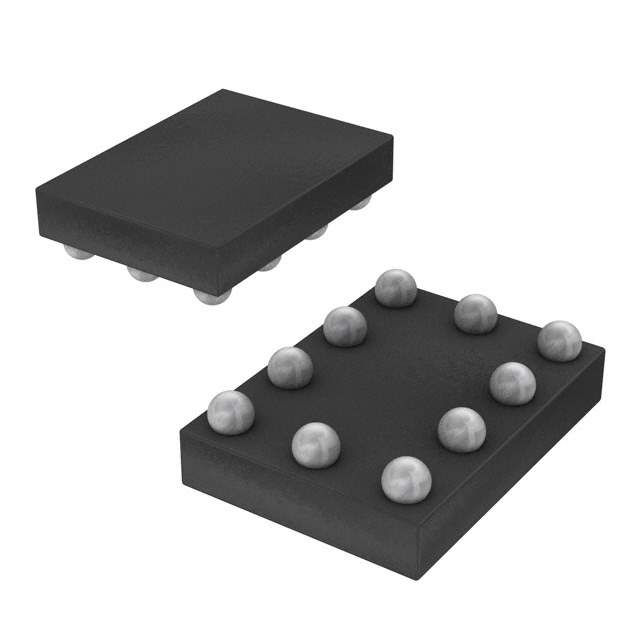

Offered in a compact DSBGA package, the TS3A24159YZPR is designed to occupy minimal board space, which is advantageous for space-constrained applications. Furthermore, Texas Instruments' commitment to quality ensures that this product meets stringent industry standards for reliability and performance.
