The TS3DV642EVM is an evaluation module designed by Texas Instruments to showcase the capabilities and features of the TS3DV642 high-speed HDMI 1:2 demultiplexer switch. This product is an essential tool for designers and engineers who want to test the performance of the TS3DV642 in their applications, such as digital TVs, set-top boxes, and other high-definition multimedia interfaces.

Key Features

• Support for high-speed data rates up to 3.4 Gbps, making it suitable for HDMI 1.4a signals and other high-speed interfaces.
• Low crosstalk and off-isolation at high-frequency ranges, ensuring signal integrity.
• Wide bandwidth that supports video resolutions up to 1080p and WUXGA in 12-bit color depth.
• Integrated electrostatic discharge (ESD) protection circuitry to safeguard against voltage spikes.
• Plug-and-play functionality with easy-to-use evaluation software that simplifies the testing process.

Design and Connectivity

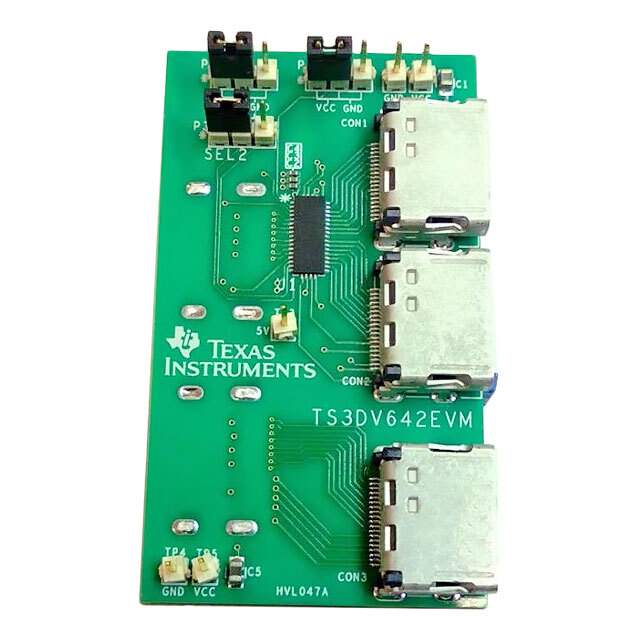

The TS3DV642EVM features a compact and user-friendly design, with clearly labeled test points and connectors to facilitate quick setup and experimentation. The board includes standard HDMI connectors for input and output, allowing direct connection to HD sources and displays.

Applications

With its high-speed switching capabilities, the TS3DV642EVM is ideal for a range of applications, including:

• High-definition video and audio signal routing.
• Signal integrity analysis for HDMI and other high-speed digital interfaces.
• Consumer electronics development, such as HDTVs and home theater systems.
• Professional AV equipment testing and prototyping.

Technical Support and Resources

Texas Instruments provides comprehensive technical support for the TS3DV642EVM, including detailed documentation, reference designs, and the TI E2E™ support forums. Customers can access a wealth of resources to maximize the utility of the evaluation module and accelerate the development process.
