The Texas Instruments TS3A5017RSVR is a high-performance, quad single-pole double-throw (SPDT) analog switch designed to provide precision and reliability in a wide range of applications. This device is part of the modern semiconductor solutions that Texas Instruments offers to enhance the efficiency and functionality of electronic systems.

Key Features

• Wide Operating Range: The TS3A5017RSVR operates over a broad power supply range from 2.3V to 3.6V, making it versatile for various applications.
• Low On-State Resistance: With a typical on-state resistance of just 10 ohms, the switch ensures minimal signal distortion and power loss, which is crucial for maintaining signal integrity.
• High-Speed Switching: The device is capable of fast switching speeds, which is essential for applications that require quick response times.
• Bidirectional Signal Flow: The switch can handle bidirectional signal flow, which adds to its flexibility and allows for more complex circuit designs.
• Break-Before-Make Switching: This feature prevents signal overlap and ensures that no two paths are connected simultaneously, thereby avoiding potential short circuits.

Applications

The TS3A5017RSVR is suitable for a multitude of applications, including but not limited to:

• Signal routing in audio and video equipment
• Communication systems
• Data acquisition systems
• Medical equipment
• Networking devices

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TS3A5017RSVR is no exception. It is designed to meet the stringent requirements of the industrial market, ensuring a reliable performance in even the most demanding conditions. The device is also RoHS compliant, reflecting Texas Instruments' dedication to environmental responsibility.

Package and Availability

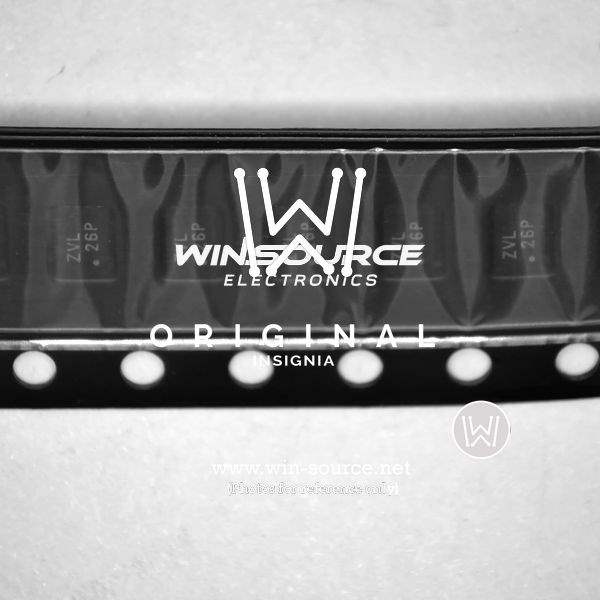

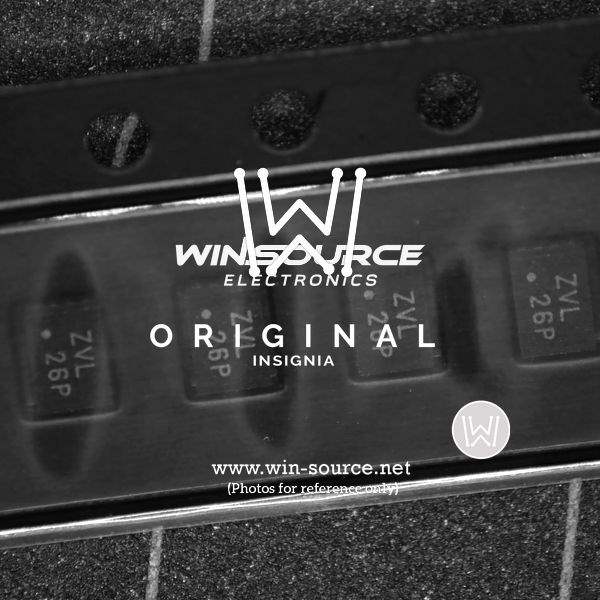

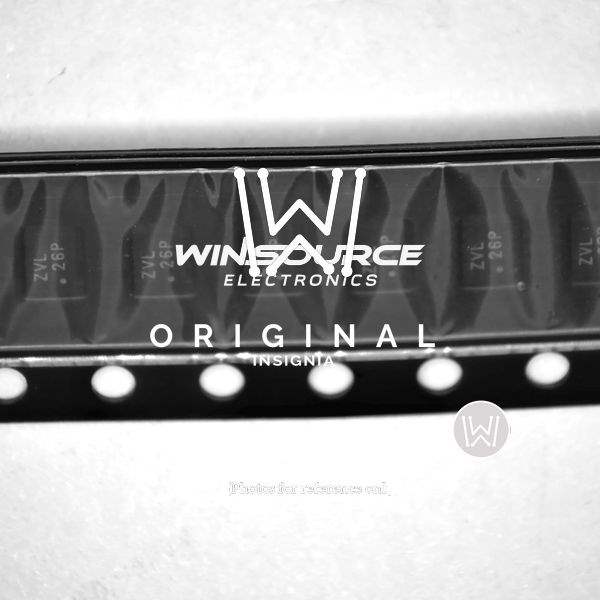

The TS3A5017RSVR comes in a compact QFN-16 package, which is ideal for space-constrained applications. It is available for purchase through Texas Instruments' distributors and online store, providing easy access for designers and engineers looking to integrate this high-quality switch into their projects.
