Product Overview: TRS3221EIPWR by Texas Instruments

The TRS3221EIPWR is a highly integrated device designed by Texas Instruments, one of the leading manufacturers in the semiconductor industry. This product is a part of TI's extensive line of interface ICs and is specifically a RS-232 transceiver. It is engineered to facilitate serial communication in a variety of applications, ranging from industrial and telecom systems to consumer electronics.

The TRS3221EIPWR operates over a single 3.0 V to 5.5 V power supply, making it versatile for use in both battery-powered and traditional powered devices. Its low-power consumption is a standout feature, as it supports a typical operating current of just 1 mA, with a low-power shutdown mode that reduces this further to 1 µA, thereby extending the life of battery-operated devices.

This transceiver is capable of handling data transmission rates up to 250 kbps, which is sufficient for many low-speed interfaces that require reliable data transfer without the need for high-speed capabilities. It also includes a 1 Mbps (megabits per second) driver output disable function, which allows the user to disable the driver outputs when they are not in use, thus reducing power consumption even further.

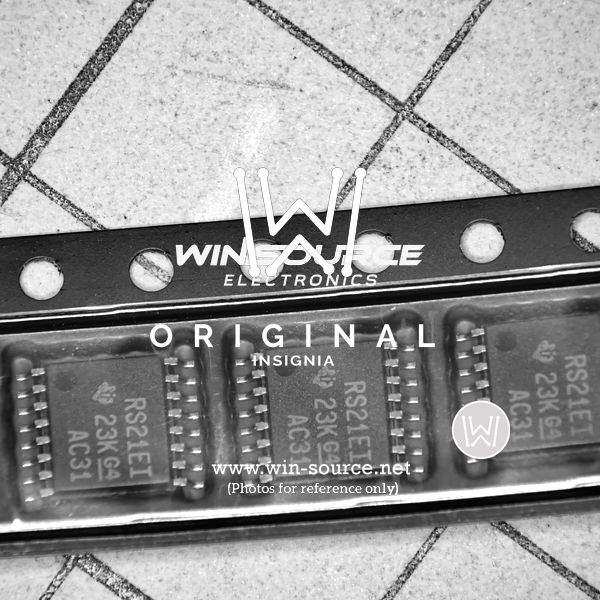

The TRS3221EIPWR comes in a TSSOP (Thin Shrink Small Outline Package) with 20 pins, providing a compact footprint for space-constrained applications. It is designed with electrostatic discharge (ESD) protection above 15 kV (IEC 61000-4-2 Air-Gap Discharge) and 8 kV (IEC 61000-4-2 Contact Discharge), ensuring robust performance and reliability in harsh environments.

Additionally, the device features an automatic power-down function when the serial port is inactive, thus conserving power without compromising the performance. It has two drivers and two receivers, which comply with the TIA/EIA-232-F standards, ensuring compatibility with a wide range of RS-232 protocols.

Overall, the TRS3221EIPWR from Texas Instruments is a feature-rich RS-232 transceiver that offers a balance between performance and power efficiency, making it an ideal choice for designers looking for a reliable solution for their serial communication needs.
