The TRF3702IRHCR is a high-performance, direct quadrature modulator designed and manufactured by Texas Instruments. It is a key component in the RF signal chain, used to modulate baseband signals onto an RF carrier. This device is widely employed in communication systems such as wireless infrastructure, software-defined radios, and microwave point-to-point systems where reliable and high-quality signal modulation is critical.

Key Features

• Wide Frequency Range: The TRF3702IRHCR operates over a broad frequency range, making it suitable for various applications across different frequency bands.
• High Linearity: This modulator provides excellent linearity, which is essential for maintaining signal integrity and reducing distortion in communication systems.
• Low Noise: The design of the TRF3702IRHCR ensures low noise performance, which is crucial for achieving a high signal-to-noise ratio in the transmitted signal.
• Single 5V Supply: The device operates on a single 5V supply, simplifying the power supply design and reducing the overall system complexity.
• Adjustable Gain: It features an adjustable gain, allowing for fine-tuning of the output signal level to match the requirements of specific applications.

Applications

• Wireless Infrastructure
• Software-Defined Radio (SDR)
• Microwave Point-to-Point Links
• Broadband Data Applications

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TRF3702IRHCR is no exception. It is designed to meet the rigorous demands of the telecommunications industry, ensuring stable performance over time and under varying environmental conditions. The device is also RoHS compliant, adhering to environmental standards regarding hazardous substances.

Package and Availability

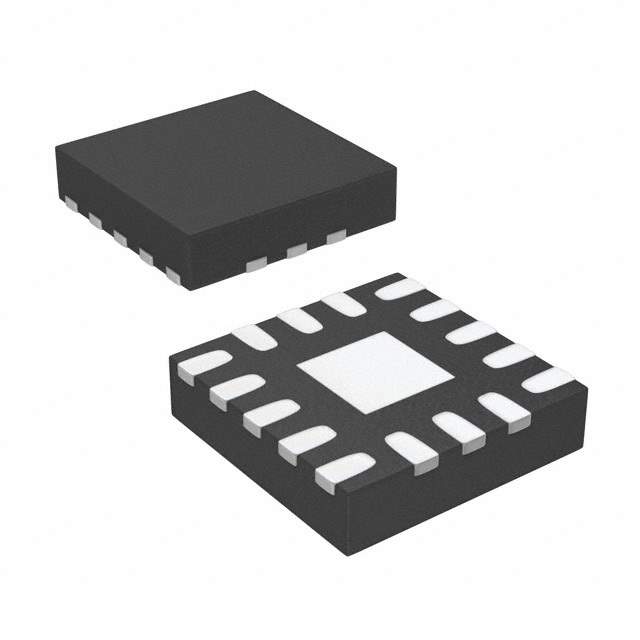

The TRF3702IRHCR is available in a compact QFN (Quad Flat No-leads) package, which is ideal for space-constrained applications. The package is designed to facilitate easy mounting and integration into a wide range of electronic systems. For availability, pricing, and ordering information, customers can visit the Texas Instruments website or contact authorized distributors.
