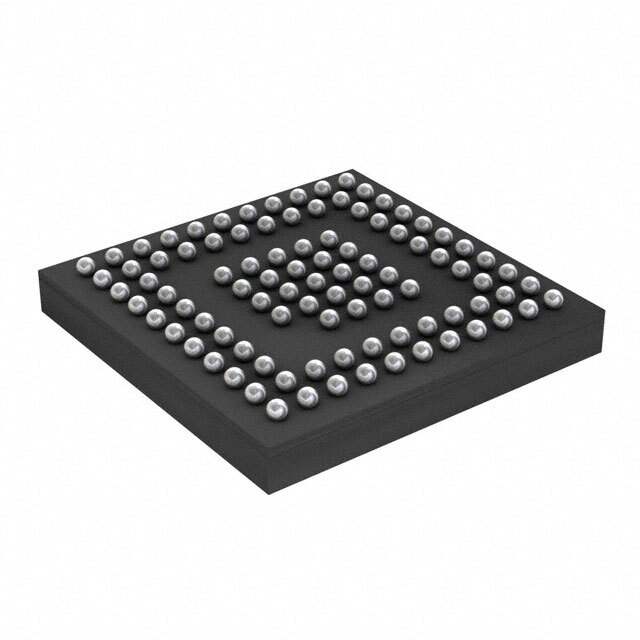

TPS65982DCZQZR USB Type-C and USB PD Controller

The TPS65982DCZQZR from Texas Instruments is a versatile and highly integrated USB Type-C and Power Delivery (PD) controller designed to simplify the implementation of USB Type-C interfaces with Power Delivery capabilities. This advanced controller is suitable for a wide range of applications, including laptops, tablets, smartphones, docks, and monitors.

Key Features:

• Integration: Combines Type-C configuration channel (CC) logic, Power Delivery (PD) policy management, and power path control in a single device.
• USB Power Delivery: Supports USB PD 3.0, allowing for higher power capabilities and flexible power management across USB Type-C connections.
• Versatile Power Solutions: Capable of acting as a source, sink, or dual-role port, providing up to 100W of power (20V at 5A).
• Alternate Mode Support: Facilitates the configuration of alternate modes for transporting non-USB signals (e.g., DisplayPort, Thunderbolt) over a USB Type-C connector.
• Programmable Power Supply: Integrated buck-boost voltage regulator supports a variety of system power topologies.
• Enhanced Security: Features I2C interface for firmware updates, ensuring the device can be updated to address future USB specifications and security requirements.
• Small Form Factor: Available in a compact 48-pin QFN package, making it suitable for space-constrained applications.

Applications:

• Mobile Devices and Accessories
• Notebooks and Ultrabooks
• Docking Stations
• Monitors and Display Interfaces
• Power Adapters and Chargers

The TPS65982DCZQZR is a comprehensive solution for USB Type-C and USB PD design needs, streamlining the development process and reducing time-to-market for new products. Its robust feature set and integration make it an ideal choice for engineers looking to implement USB Type-C connectivity with advanced power management and alternate mode functionality.
