The TPS6591104AA2ZRC from Texas Instruments is a highly integrated power management integrated circuit (PMIC) designed to support a wide range of applications, including smartphones, tablets, and other portable electronics. This versatile chip is engineered to provide a comprehensive power management solution, integrating multiple voltage regulators, power sequencing, and system control in a single package.

Key Features

• Multiple Power Rails: The TPS6591104AA2ZRC includes several buck converters, LDOs, and switchable power outputs to provide a variety of power rails with high efficiency and low noise performance.
• Advanced Power Sequencing: Integrated power sequencing ensures that the various power domains are brought up and down in the correct order, safeguarding the system against potential damage from improper voltage application.
• Configurable: The device is highly configurable through its I2C interface, allowing for fine-tuning of voltage levels, power sequencing, and other parameters to meet specific application requirements.
• Power Saving Modes: It features multiple power-saving modes to enhance battery life in portable applications, including a dynamic voltage scaling capability that adjusts the power supply in response to system load.

Applications

With its broad feature set and configurability, the TPS6591104AA2ZRC is suitable for a wide range of applications. It is particularly well-suited for battery-powered devices where efficient power management is critical. This includes but is not limited to:

• Mobile Phones
• Tablets
• Portable Media Players
• Handheld Gaming Devices
• Wearable Technology

Technical Specifications

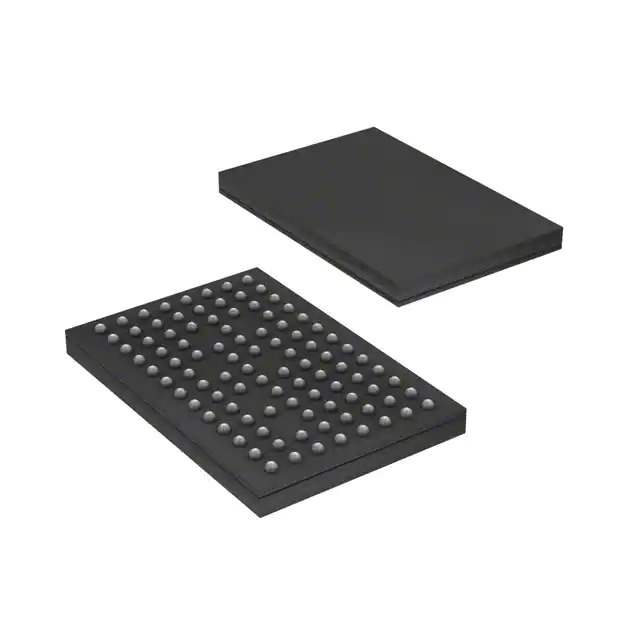

The TPS6591104AA2ZRC operates over a wide input voltage range and provides multiple outputs with various current ratings. It is available in a compact package, making it ideal for space-constrained applications. The device's thermal management features ensure reliable operation under varying load conditions.

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TPS6591104AA2ZRC is no exception. It is built to meet high industry standards, ensuring stable performance over its operational lifespan and making it a trusted choice for powering critical electronic systems.
