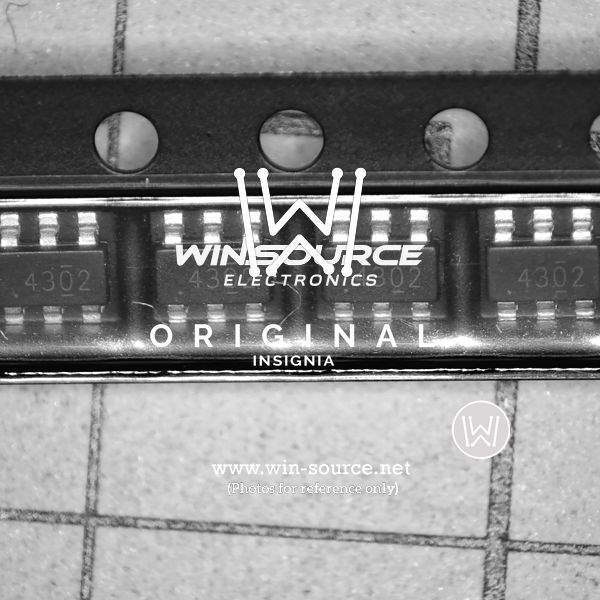

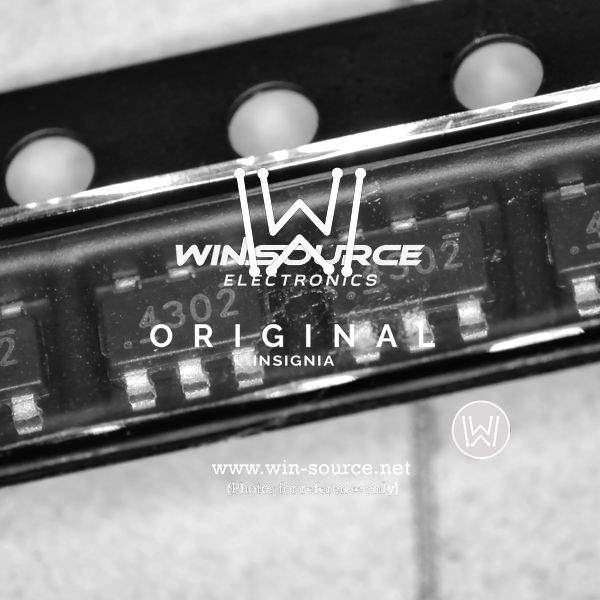

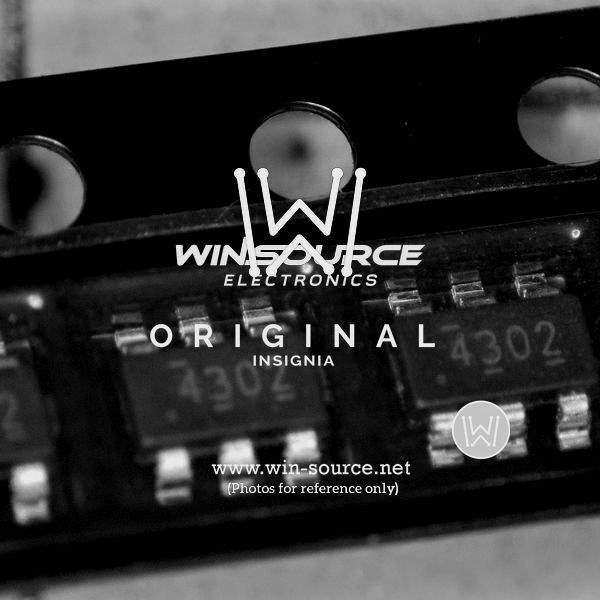

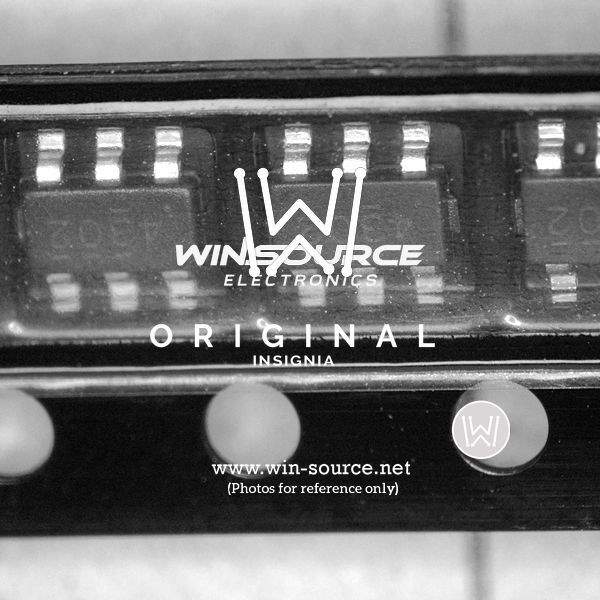

Product Overview: TPS54302DDCR by Texas Instruments

The TPS54302DDCR is a highly efficient synchronous step-down (buck) converter from the renowned semiconductor manufacturer Texas Instruments (TI). This compact and robust power management IC is designed to deliver up to 3A of continuous output current with an input voltage range of 4.5V to 28V. Its versatility makes it an ideal choice for a wide range of applications, including industrial, automotive, power supply, and consumer electronics.

The device incorporates TI's advanced Eco-mode™ feature, which significantly improves light-load efficiency by reducing the switching frequency and minimizing the quiescent current. This, in turn, allows for extended battery life in portable applications and reduced power consumption in various systems.

The TPS54302DDCR supports a wide range of output voltages, adjustable from 0.8V to 17V, enabling it to power a diverse set of loads, from microcontrollers and FPGAs to sensors and RF components. The device's high efficiency is maintained over a broad load range, thanks to its current-mode control, which provides fast transient response and excellent loop stability.

Engineered for reliability, the TPS54302DDCR features a range of protective measures, including overcurrent protection (OCP), overvoltage protection (OVP), thermal shutdown (TSD), and undervoltage lockout (UVLO). These safety features ensure the longevity and stable operation of both the converter and the end application under various conditions.

TI's TPS54302DDCR comes in a small 8-pin SON package with a thermal pad, designed for optimal thermal performance and space-saving on the PCB. Its pinout is optimized for easy routing, which simplifies the design and reduces the risk of noise interference in sensitive circuits. With its high level of integration and minimal external component requirements, the TPS54302DDCR provides a cost-effective solution for a wide array of power conversion needs.

For designers and engineers looking for a reliable and efficient power solution, the TPS54302DDCR offers the performance, flexibility, and durability required to meet the challenging demands of modern electronic devices.
