Maxim Integrated MAX20404AFOA/VY+ Automotive Step-Down Converter

The MAX20404AFOA/VY+ from Maxim Integrated is a high-performance, synchronous step-down DC-DC converter specifically designed to meet the rigorous demands of automotive applications. This advanced power solution is capable of delivering up to 4A of continuous output current with excellent efficiency, making it an ideal choice for powering the latest automotive infotainment and advanced driver-assistance systems (ADAS).

With an input voltage range of 3.5V to 36V, the MAX20404AFOA/VY+ is versatile enough to handle a wide array of automotive power systems, including those subject to cold-crank and start-stop scenarios. Its robust design ensures reliable operation under the harsh conditions typical of automotive environments, including overvoltage, undervoltage, overtemperature, and short-circuit events.

The converter operates at a fixed switching frequency that can be selected from 220kHz to 2.2MHz or synchronized to an external clock, allowing for design flexibility and optimization of efficiency and component size. Additionally, the device includes a spread-spectrum mode that helps minimize EMI, a critical feature for automotive systems that must comply with stringent electromagnetic compatibility (EMC) requirements.

Key features of the MAX20404AFOA/VY+ include:

• High efficiency with 4A output current capability
• Wide input voltage range (3.5V to 36V) suitable for automotive power systems
• Adjustable switching frequency from 220kHz to 2.2MHz
• External synchronization capability
• Spread-spectrum mode for reduced EMI emissions
• Protection features for overvoltage, undervoltage, overtemperature, and short-circuit conditions

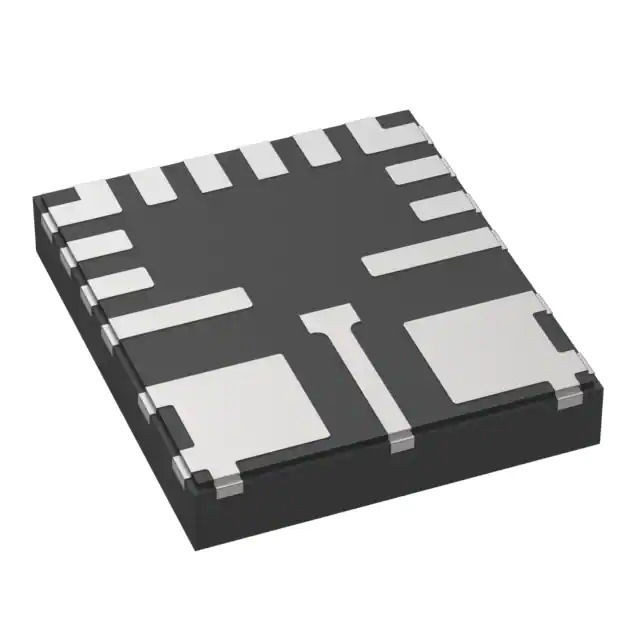

• Compact, thermally enhanced TDFN package for space-constrained applications

The device is packaged in a compact, thermally enhanced TDFN package, making it suitable for space-constrained applications where thermal management is a concern. With its combination of performance, flexibility, and protection features, the MAX20404AFOA/VY+ is a comprehensive power management solution that meets the stringent requirements of the automotive industry.

Whether you're designing an entertainment system, a navigation module, or any other sophisticated automotive application, the MAX20404AFOA/VY+ offers the reliability and efficiency needed for optimal performance.
