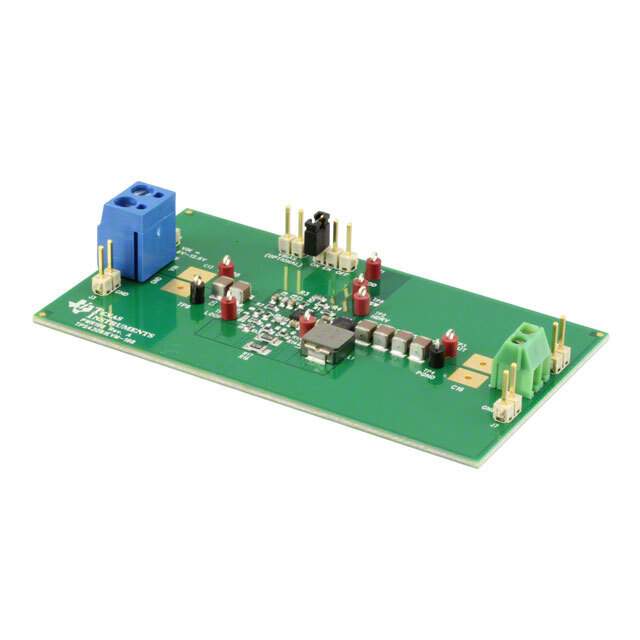

The TPS43061EVM-198 from Texas Instruments is a fully assembled and tested circuit for evaluating the TPS43061 Synchronous Step-Down Controller. This high-performance tool is designed to provide an efficient and versatile solution for a wide range of power supply applications.

Key Features:

• Wide Input Voltage Range: The TPS43061EVM-198 operates over a broad input voltage range, making it suitable for various applications, from industrial systems to consumer electronics.
• Adjustable Switching Frequency: Users can set the switching frequency of the device to optimize performance for specific applications, balancing efficiency and component size.
• Integrated Synchronous Rectification: The module includes synchronous MOSFETs to enhance efficiency by reducing diode conduction losses.
• Flexible Output Voltage Configuration: The output voltage is easily adjustable, which allows the EVM to be used for prototyping a wide range of end products.
• Advanced Protection Features: The TPS43061EVM-198 includes over-voltage, under-voltage, over-current, and over-temperature protection to ensure reliable operation under various conditions.

Applications:

• Power supplies for FPGAs and microprocessors
• Telecommunication and networking equipment
• Industrial control systems
• Point-of-load conversions
• Automotive and battery-powered applications

Technical Specifications:

• Input Voltage Range: 4.5V to 38V
• Output Voltage Range: Adjustable
• Switching Frequency: Up to 1MHz
• Efficiency: Up to 95%
• Footprint: Compact design for easy integration

With its comprehensive features and robust design, the TPS43061EVM-198 Evaluation Module is an excellent platform for developing and testing power supply solutions. Whether for rapid prototyping or educational purposes, this EVM from Texas Instruments provides a convenient and reliable way to explore the capabilities of the TPS43061 synchronous step-down controller.
