Overview of Texas Instruments TPS3700QDSERQ1

The TPS3700QDSERQ1 is a high-precision window voltage detector designed by Texas Instruments (TI) to cater to the demanding requirements of automotive and industrial applications. This advanced monitoring IC is engineered to ensure that supply voltages remain within specified thresholds, providing reliable system protection and performance optimization.

Key Features

• Wide Supply Voltage Range: The TPS3700QDSERQ1 operates over a broad supply voltage range of 1.8 V to 18 V, making it versatile for various system voltages.
• Dual Window Comparator: It features two independent window comparators that allow users to monitor two different voltage levels, ensuring both under-voltage and over-voltage conditions are checked.
• High Accuracy: With a precision threshold accuracy of 1% over the temperature range, it provides reliable voltage monitoring crucial for sensitive electronic systems.
• Adjustable Thresholds: Threshold voltages can be set using external resistive dividers, offering flexibility to adapt to specific application requirements.
• Qualified for Automotive Applications: As a Q1 device, the TPS3700QDSERQ1 is AEC-Q100 qualified, making it suitable for automotive environments where extreme temperature and reliability are non-negotiable.

Applications

The TPS3700QDSERQ1 is ideal for a range of applications, particularly where accurate voltage monitoring is critical. It is commonly used in:

• Automotive systems such as Engine Control Units (ECUs) and Advanced Driver Assistance Systems (ADAS)
• Industrial equipment requiring precise voltage supervision
• Power supply monitoring in servers and telecom infrastructure
• Battery-powered devices where power levels must be carefully managed

Package and Reliability

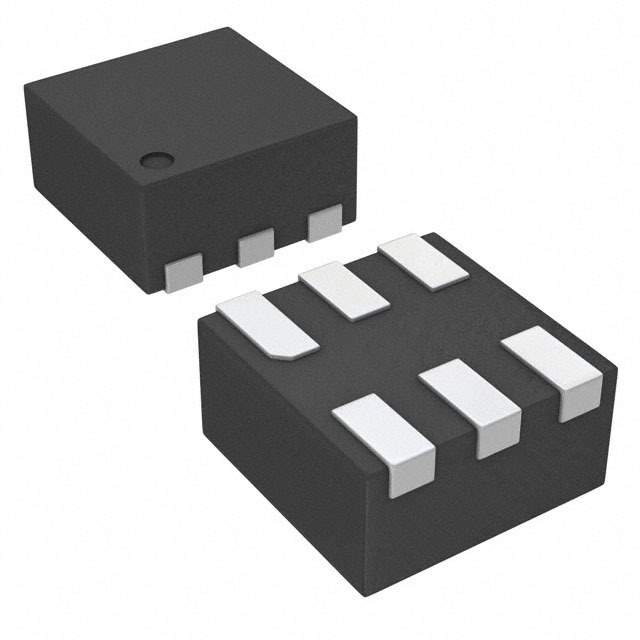

Enclosed in a compact 6-pin WSON package, the TPS3700QDSERQ1 is designed to occupy minimal space on a printed circuit board (PCB), addressing the space constraints of modern electronic designs. It also features over-temperature and over-current protection, enhancing the reliability and longevity of the applications it serves.

With its combination of precision, flexibility, and robustness, the TPS3700QDSERQ1 from Texas Instruments stands out as a high-quality component for any design requiring stringent voltage monitoring.
