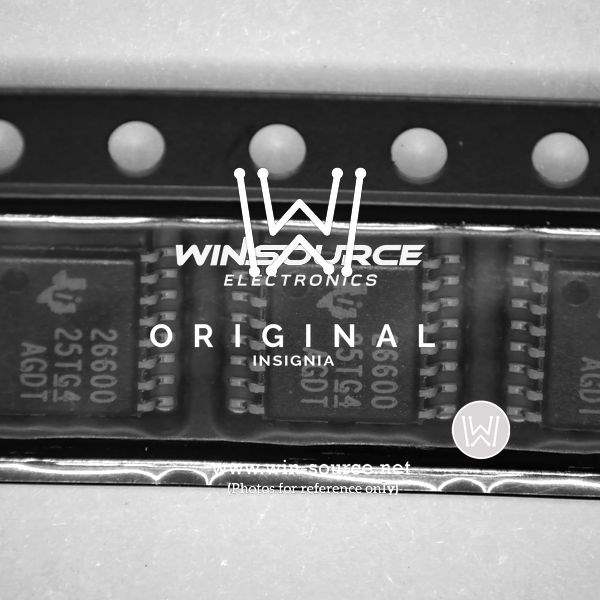

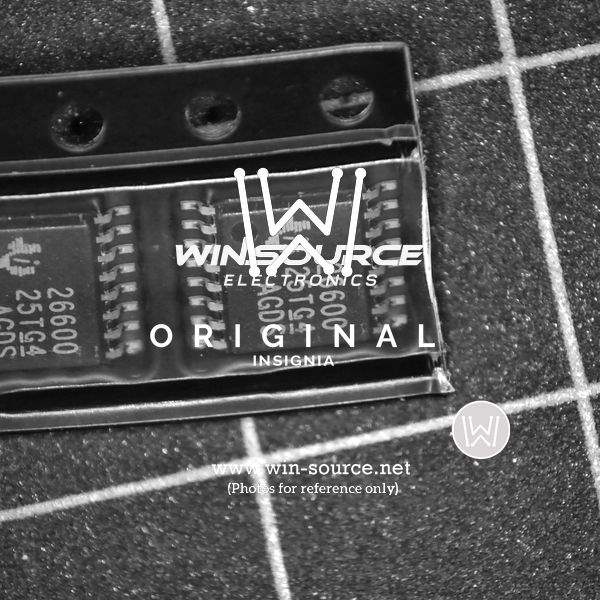

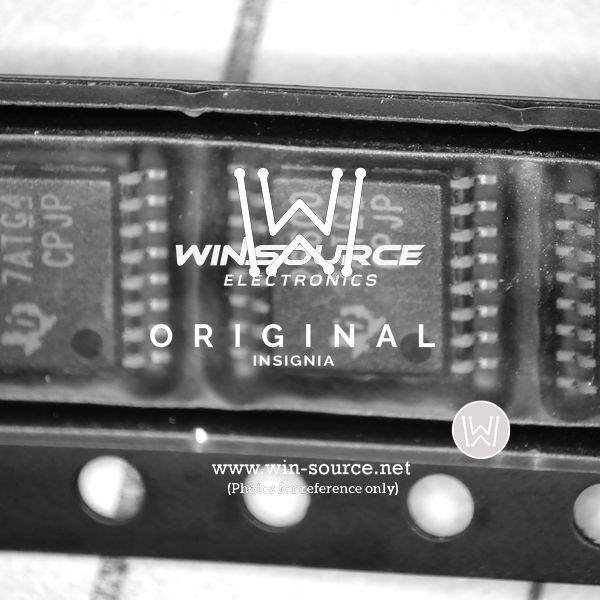

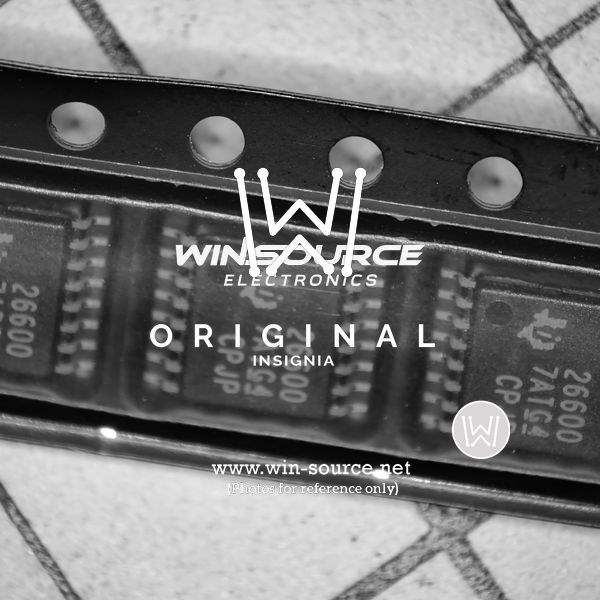

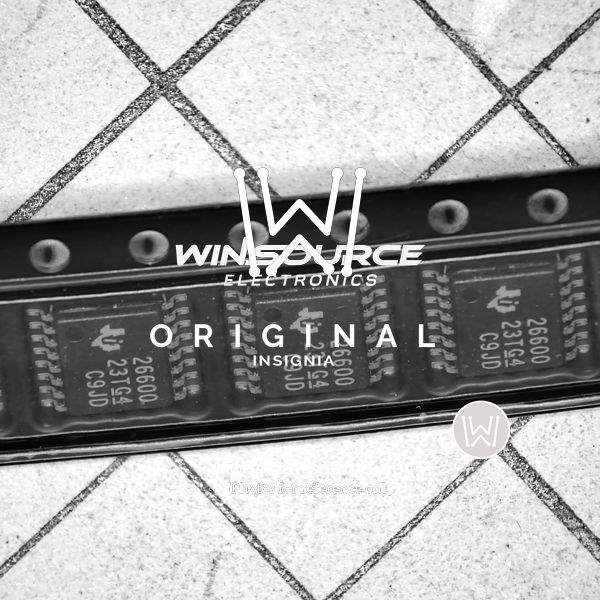

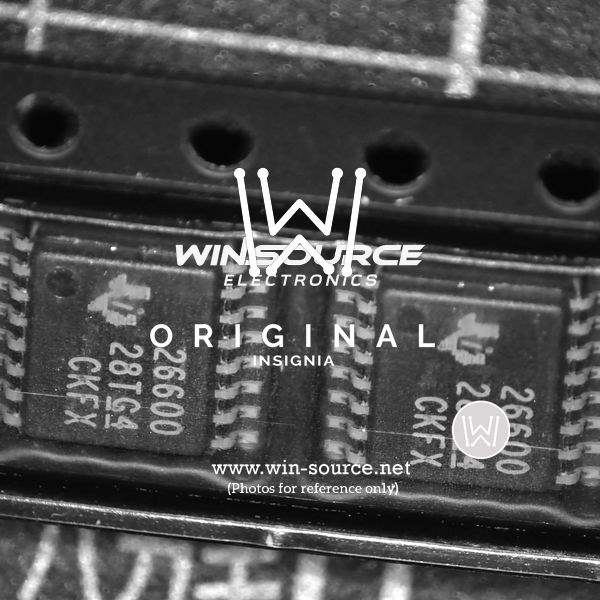

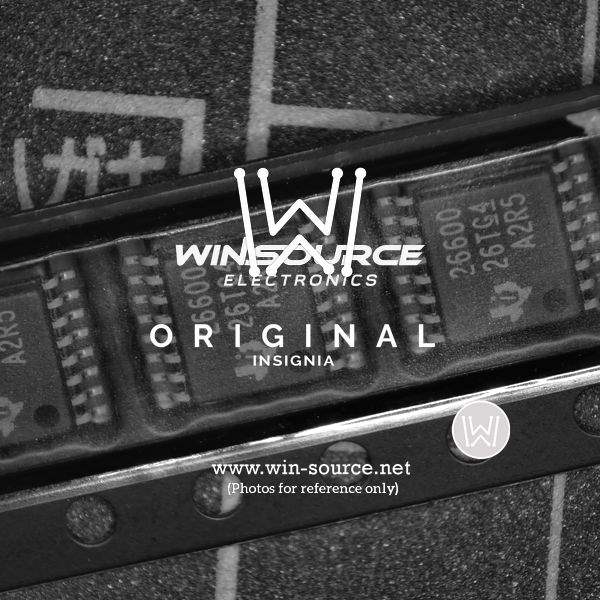

Overview of TPS26600PWPR from Texas Instruments

The TPS26600PWPR is an industrial-grade, high-voltage adjustable eFuse with a wide operating voltage range, designed and manufactured by Texas Instruments (TI). This advanced circuit protection and power management device is housed in a compact PowerPad MSOP-16 package, making it suitable for a variety of applications where space is at a premium and robust protection is required.

Key Features

• Wide Input Voltage Range: The TPS26600PWPR operates over a broad input voltage range of 4.5V to 55V, catering to a vast array of industrial and communication applications.
• Integrated eFuse: The device features an integrated electronic fuse that provides overcurrent protection, ensuring the safety and longevity of downstream components.
• Adjustable Current Limit: Users can set the current limit threshold via an external resistor, offering flexibility to tailor the protection to specific circuit requirements.
• Overvoltage and Undervoltage Lockout: The TPS26600PWPR includes overvoltage and undervoltage lockout features, which protect the load from voltage transients and maintain stable operation.
• Thermal Shutdown: An internal thermal shutdown mechanism prevents damage from overheating, enhancing the reliability of the device.
• Reverse Polarity Protection: The device is capable of withstanding reverse polarity conditions, a critical feature for industrial environments where connection errors may occur.

Applications

The TPS26600PWPR is ideally suited for a range of applications, including but not limited to:

• Industrial control systems
• PLC (Programmable Logic Controllers)
• Factory automation and robotics
• Telecommunication equipment
• Power supplies and distribution systems

Reliability and Performance

With Texas Instruments' reputation for quality and performance, the TPS26600PWPR is engineered to deliver reliable circuit protection. Its robust design ensures that it can withstand harsh industrial environments while providing precise control over power delivery and protection. Whether it's safeguarding sensitive electronics or ensuring the stability of a power distribution network, the TPS26600PWPR is a versatile solution that engineers can trust.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments website or consult the TPS26600PWPR datasheet.
