Product Overview: TPS259541DSGT by Texas Instruments

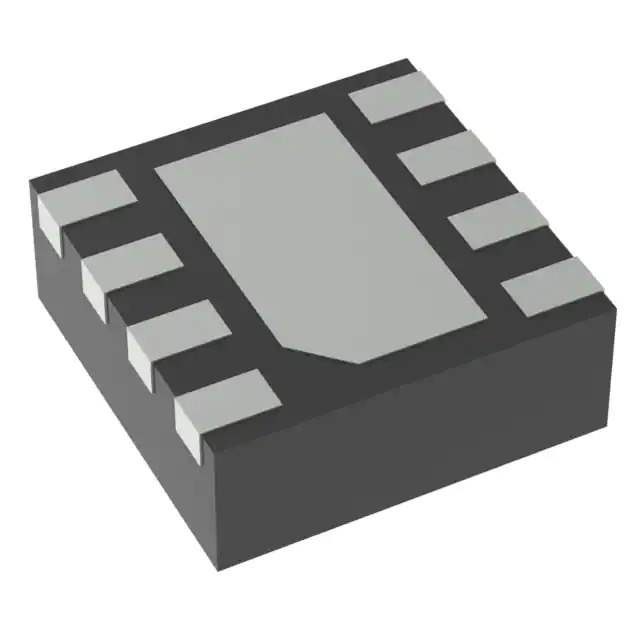

The TPS259541DSGT is a state-of-the-art eFuse or integrated power switch from the globally recognized semiconductor manufacturer, Texas Instruments. This compact, feature-rich device is designed to provide precision overcurrent protection for a wide range of applications. It is housed in a tiny 8-pin WSON package, making it an ideal solution for space-constrained applications.

With an input voltage range of 2.7V to 18V, the TPS259541DSGT is versatile and can be used in various systems that require efficient power distribution and management. This eFuse is capable of handling continuous current up to 5A, which makes it suitable for both low and moderate power applications. The device also features an adjustable current limit, which can be set by an external resistor, providing designers with the flexibility to tailor the protection as per their system requirements.

The TPS259541DSGT comes with a slew of protective features that ensure the safety and reliability of the end application. These include overvoltage protection, undervoltage lockout, overtemperature shutdown, and a fast short-circuit response time. Additionally, the device offers a programmable under-voltage lockout (UVLO) and over-voltage lockout (OVLO) to safeguard the system against abnormal voltage conditions.

One of the key benefits of this eFuse is its power good (PG) output, which provides a real-time indication of the operating status. This signal can be used for downstream load enable or as a system status feedback for microcontrollers and other logic interfaces. Moreover, the TPS259541DSGT supports a controlled rise time, which minimizes inrush current and reduces the stress on the power supply during startup.

For applications that demand a robust power protection solution with minimal footprint, the TPS259541DSGT by Texas Instruments is an excellent choice. It is widely used in USB hubs, set-top boxes, solid-state drives, and other consumer electronics where precise power control and protection are essential.

Overall, the TPS259541DSGT combines high performance, comprehensive protection features, and a small package, making it a top choice for designers looking to enhance the safety and efficiency of their power management systems.
