Product Overview: TPS22943DCKR by Texas Instruments

The TPS22943DCKR is a compact, low-voltage single-channel load switch designed by Texas Instruments to provide efficient power distribution and management for a wide range of electronic devices. This high-quality component is an essential part of modern electronics, ensuring that power is supplied to various parts of a system in a controlled and efficient manner.

Key Features

• Input Voltage Range: The TPS22943DCKR operates with an input voltage range of 1.1V to 3.6V, making it suitable for low-voltage applications such as portable and battery-powered devices.
• Ultra-Low On-Resistance: This load switch boasts an ultra-low on-resistance (R<sub>ON) of 105 mΩ at 1.8V, minimizing power loss and improving overall system efficiency.
• Low Quiescent Current: It features a low quiescent current of 0.1 µA (typical), which is crucial for extending battery life in portable applications.
• Quick Output Discharge: The device includes a quick output discharge feature that allows the output to be discharged rapidly when the switch is turned off, thereby preventing any unwanted power residue in the system.
• Controlled Turn-On: The TPS22943DCKR offers a controlled turn-on functionality, which helps to prevent inrush current and ensures a smooth power-up for sensitive loads.

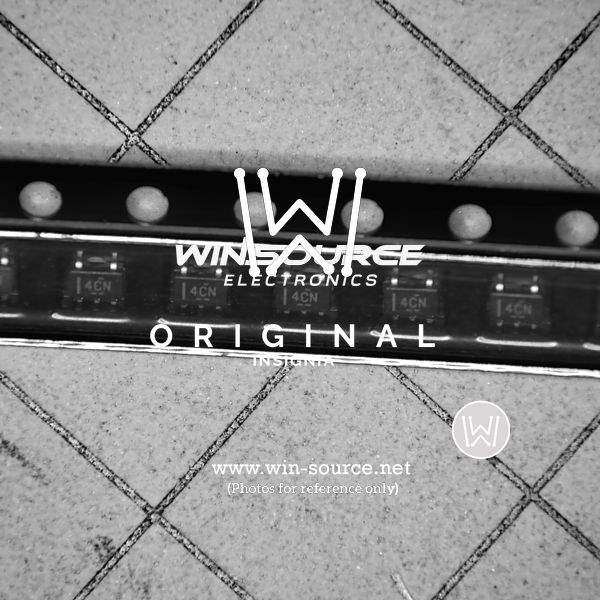

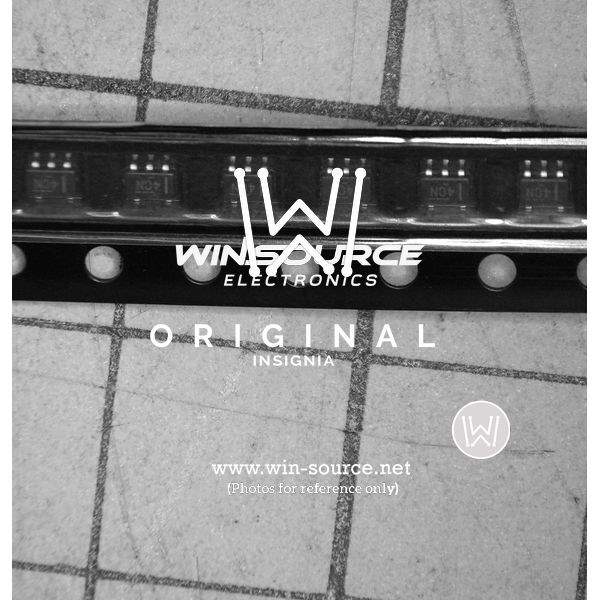

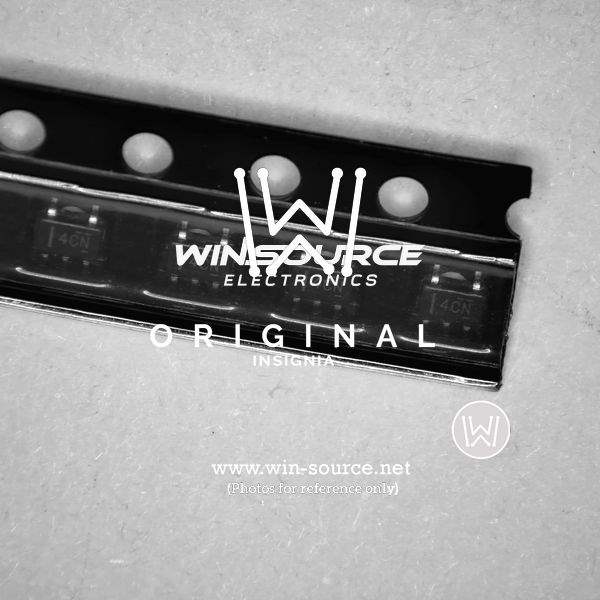

• Small Package Size: Housed in a tiny 6-pin SC-70 package, this load switch is designed for space-constrained applications, providing a compact power management solution without sacrificing performance.

Applications

The TPS22943DCKR is ideal for a variety of applications, including but not limited to:

• Smartphones and Tablets
• Wearable Technology
• Portable Medical Devices
• Wireless Headsets and Earbuds
• IoT Devices
• Power Management for Peripheral Ports

Conclusion

With its robust feature set and compact design, the TPS22943DCKR from Texas Instruments is an excellent choice for designers looking to enhance power efficiency and extend battery life in their electronic products. Its versatility and reliability make it a go-to component for a broad spectrum of low-voltage power distribution applications.
