Product Overview: TPS22925CNYPHR by Texas Instruments

The TPS22925CNYPHR is a high-performance, low-resistance load switch from Texas Instruments (TI), designed to effectively manage power distribution in various electronic systems. This compact, single-channel load switch offers an efficient solution for applications that require minimal power loss and space savings on the PCB.

Key Features

• Low On-Resistance: The device features a low on-resistance (R<sub>ON) of typically 28 mΩ at a 5V input, ensuring minimal voltage drop and power loss across the switch during operation.
• Input Voltage Range: It supports a wide input voltage range from 1.1V to 5.5V, making it versatile for a broad range of applications, including those powered by standard battery technologies.
• Current Handling: Capable of handling a continuous current of up to 2A, the TPS22925CNYPHR is suitable for high-performance applications.
• Quick Output Discharge: An integrated quick output discharge transistor provides a rapid discharge of the output capacitance when the device is turned off, preventing unwanted power residue in the system.
• Controlled Slew Rate: The device ensures a controlled slew rate to minimize inrush current, which helps in reducing noise and system disturbances during power-up.

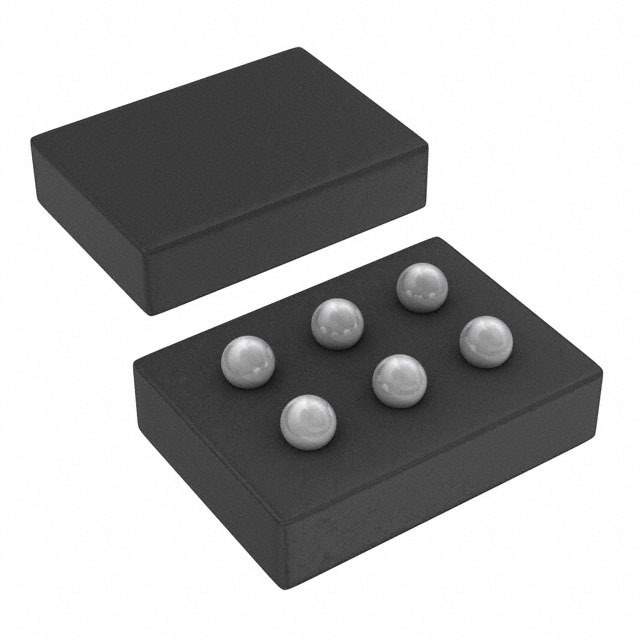

• Ultra-Small Package: Housed in a tiny, leadless 6-pin DSBGA package with a footprint of just 0.64 mm x 1.22 mm, the TPS22925CNYPHR saves valuable board space in space-constrained applications.

Applications

The TPS22925CNYPHR is ideal for a variety of applications where efficient power management is crucial. These include:

• Portable and battery-powered devices
• Smartphones and tablets
• Wearable technology
• Power management modules
• Point-of-load power distribution systems

Reliability and Protection

TI's TPS22925CNYPHR load switch incorporates several protection features to ensure reliable operation. Over-temperature protection safeguards the device from thermal overload, while the under-voltage lockout (UVLO) feature ensures that the switch operates only when the input voltage is within the specified range. These features, combined with the robust design and manufacturing quality of Texas Instruments, make the TPS22925CNYPHR a reliable choice for power management solutions.
